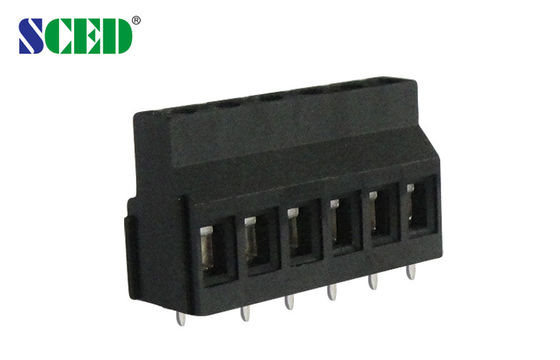

5.08mm 10A 300V PCB Terminal Block Electrical With Right Angle Wire Inlet

5.08mm 10A 300V PCB Terminal Block Electrical With Right Angle Wire Inlet

  • 5.08mm 10A 300V PCB Terminal Block Electrical With Right Angle Wire Inlet
5.08mm 10A 300V PCB Terminal Block Electrical With Right Angle Wire Inlet
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ508-18
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1.5KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
Number Of Contacts: 2P-24P Pitch: 5.08mm
Rated Current: 10A Rated Voltage: 300V
Type: PCB Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks Wire Range: 12-26
High Light:

pcb screw terminal blocks

,

pcb terminal block connectors

5.08mm 10A 300V PCB Terminal Block Electrical With Right Angle Wire Inlet

■Single Deck;  □Double decks;  □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer

How to order:
5.08mm 10A 300V PCB Terminal Block Electrical With Right Angle Wire Inlet 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3

5.08mm 10A 300V PCB Terminal Block Electrical With Right Angle Wire Inlet 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
