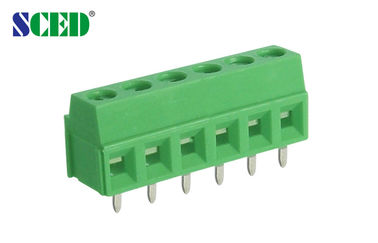

Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin

Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin

  • Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin
Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ381-00
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
Number Of Contacts: 2P-28P Pitch: 3.81mm
Rated Current: 10A Rated Voltage: 300V
Type: PCB Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks Wire Range: 16-24
High Light:

pcb terminal block connectors

,

pcb mount terminal block





Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin







Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..







■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green. Other colors also available, please refer to below How to Order and select the color

you want.

PCB mount terminal blocks , PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer





How to order:

Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin 0





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10





Wire Range                       AWG

16-24





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.3

Stripping Length                    mm

4-5

Screw / Torque                    / lbf.in

M2 / 1.8-2.0





Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin 1





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
