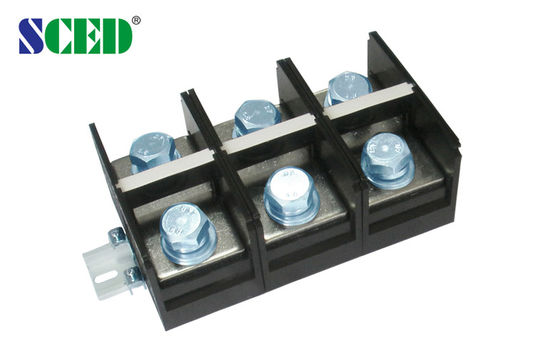

Single Level High Current Terminal Block Connector 600V 500A Pitch 60.00mm

Single Level High Current Terminal Block Connector 600V 500A Pitch 60.00mm

Products - High Current Terminal Block
  • Highlight

    pcb wire terminals

    ,

    wiring terminal blocks

  • Applications
    PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Pitch
    60.00mm
  • Rated Current
    500A
  • Rated Voltage
    600V
  • Type
    High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    350-750kcmil
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR500-00-FaM0
  • Minimum Order Quantity
    300
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    600K poles each monthly

Single Level High Current Terminal Block Connector 600V 500A Pitch 60.00mm

  • Single Level High Current Terminal Block Connector 600V 500A Pitch 60.00mm
  • Single Level High Current Terminal Block Connector 600V 500A Pitch 60.00mm
Get Price Contact Now

Single Level High Current Terminal Block Connector 600V 500A Pitch 60.00mm

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks




How to order:
Single Level High Current Terminal Block Connector 600V 500A Pitch 60.00mm 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 500

600 / 500



Wire Range                       AWG

350-750kcmil

350-750kcmil



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

1000 / 500

1000 / 500

1000 / 500

Rated Surge Voltage                 KV

10

10

10

Rated Connecting Capacity           mm2

380

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

30-35

Screw / Torque                    / lbf.in

M12 / 200-213



Single Level High Current Terminal Block Connector 600V 500A Pitch 60.00mm 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
