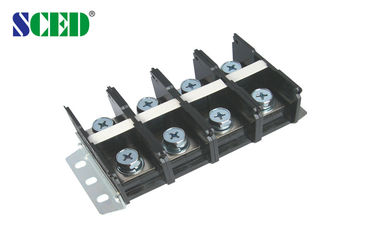

300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block

300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block

Products - High Current Terminal Block
  • Highlight

    pcb wire terminals

    ,

    wiring terminal blocks

  • Type
    High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
  • Pitch
    45mm
  • Rated Voltage
    600V
  • Rated Current
    300A
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    4-350kcmil
  • Applications
    PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR300-01-BM0
  • Minimum Order Quantity
    300
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    500K poles each monthly

300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block

  • 300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block
  • 300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block
Get Price Contact Now

300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block



■Single Level;  □Double levels;  □Triple levels

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks





How to order:

300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 300

600 / 300



Wire Range                       AWG

4-350kcmil

4-350kcmil



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 300

1000 / 300

1000 / 300

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

150

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

19-21

Screw / Torque                    / lbf.in

M10 / 50-60





300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block 1





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
