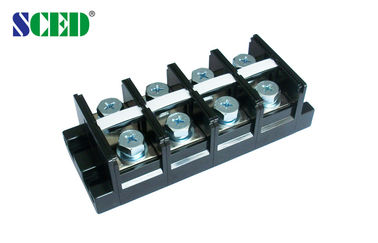

Black High Current PCB Terminal Block Connector 36.00mm Pitch 600V 240A

Black High Current PCB Terminal Block Connector 36.00mm Pitch 600V 240A

  • Highlight

    wiring terminal blocks

    ,

    power terminal block

  • Type
    High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
  • Pitch
    36.00mm
  • Rated Voltage
    600V
  • Rated Current
    240V
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    4-250kcmil
  • Applications
    PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR240-00-BM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Black High Current PCB Terminal Block Connector 36.00mm Pitch 600V 240A

Black High Current PCB Terminal Block Connector 36.00mm Pitch 600V 240A



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers





How to order:

Black High Current PCB Terminal Block Connector 36.00mm Pitch 600V 240A 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 240

600 / 240



Wire Range                       AWG

4-250kcmil

4-250kcmil



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

1000 / 240

1000 / 240

1000 / 240

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

125

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

18-20

Screw / Torque                    / lbf.in

M10 / 50-60

Black High Current PCB Terminal Block Connector 36.00mm Pitch 600V 240A 1





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
