Pitch 25.00mm High Current Terminal Block Connectors , 101A 600V PCB Terminal Blocks
-
Highlight
pcb wire terminals
,wiring terminal blocks
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorBlack
-
Number Of ContactsAny Poles Available
-
Pitch25.00mm
-
Rated Current101A
-
Rated Voltage600V
-
TypeHigh Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range2-20
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR100-01-BM0
-
Minimum Order Quantity300
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability500K poles each monthly

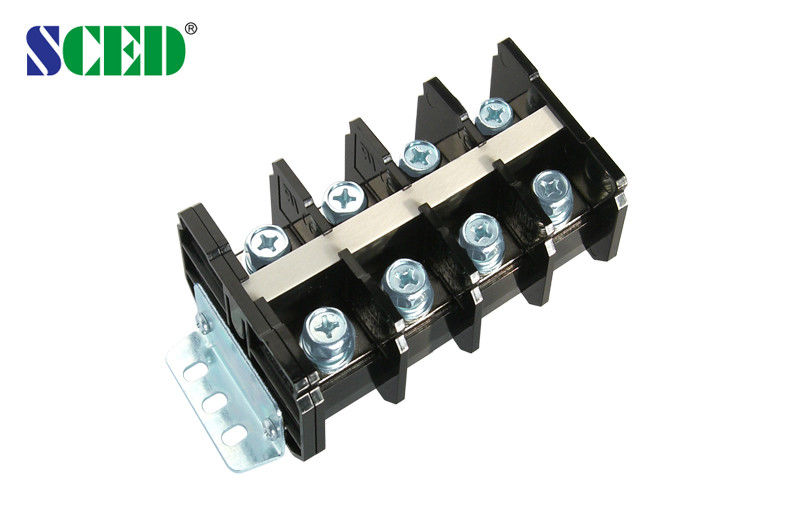

Pitch 25.00mm High Current Terminal Block Connectors , 101A 600V PCB Terminal Blocks
Pitch 25.00mm High Current Terminal Block Connectors , 101A 600V PCB Terminal Blocks
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 101 |
600 / 101 |
|
|
Wire Range AWG |
2-20 |
2-20 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 100 |
1000 / 100 |
1000 / 100 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
38 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
10-12 |
||
|
Screw / Torque / lbf.in |
M8 / 31-40 |
||
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select
the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Energy conservation, Elevator, etc..
Our products are sold all over the world, you can rest assured.
