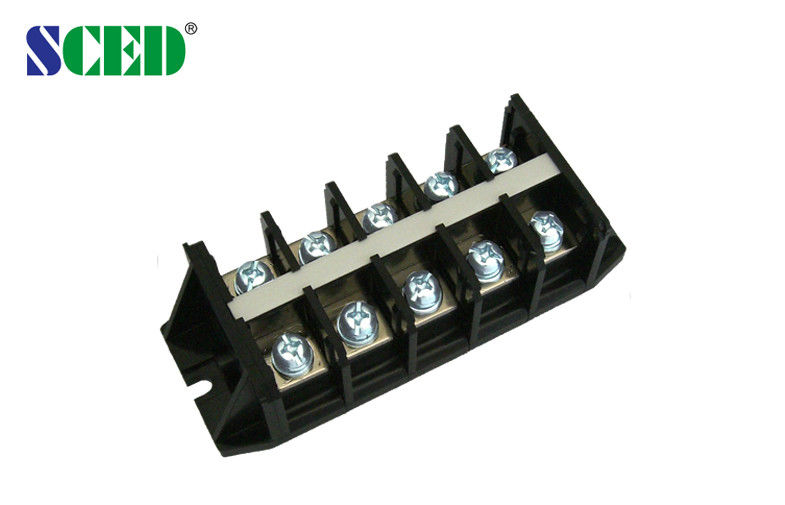

Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation

Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation

  • Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation
  • Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation
Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR80-01-BM0-N2
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks Pitch: 20.00mm
Rated Voltage: 600V Rated Current: 80A
Color: Black Number Of Contacts: Any Poles Available
Wire Range: 4-20 Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

pcb wire terminals

,

power terminal block

Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation





■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers





How to order:

Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 80

600 / 80



Wire Range                       AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 80

1000 / 68

1000 / 80

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

22

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

12-15

Screw / Torque                    / lbf.in

M6 / 18-22



Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation 1





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
