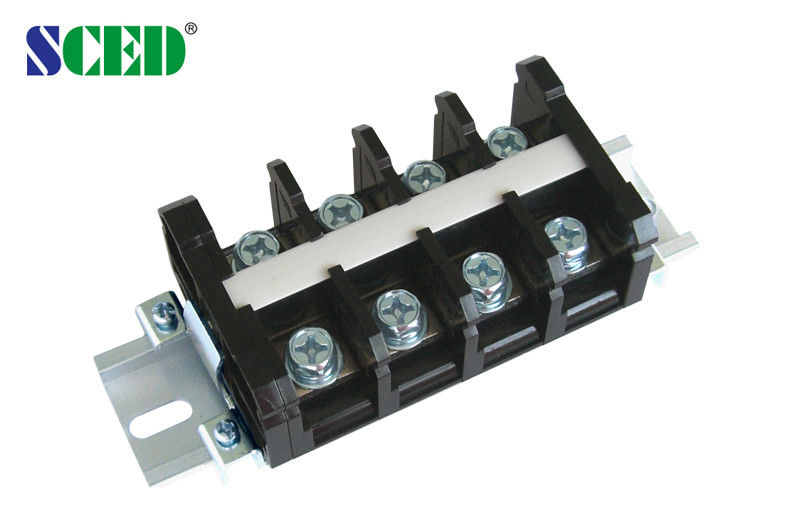

19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks

19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks

  • Highlight

    pcb wire terminals

    ,

    wiring terminal blocks

  • Applications
    PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Pitch
    19.00mm
  • Rated Current
    80A
  • Rated Voltage
    600V
  • Type
    High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    4-20
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR80-01-FaM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks

19.0mm 80A High Current Terminal Block ,  Right Angle PCB Barrier Terminal Blocks



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers





How to order:

19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 80

600 / 80



Wire Range                       AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

22

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

12-15

Screw / Torque                    / lbf.in

M6 / 18-22



19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks 1
