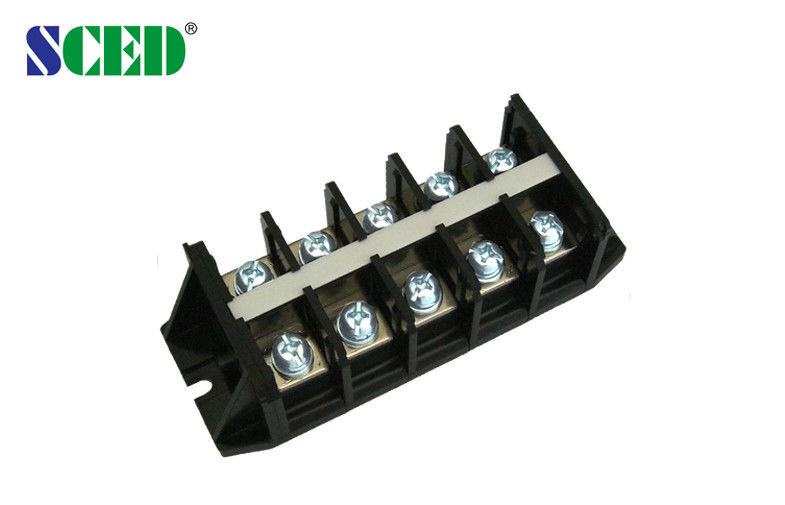

7.30mm High Current Terminal Block , 600V 10A Barrier Power Terminal Blocks

7.30mm High Current Terminal Block , 600V 10A Barrier Power Terminal Blocks

  • Highlight

    wiring terminal blocks

    ,

    power terminal block

  • Type
    High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
  • Pitch
    7.30mm
  • Rated Voltage
    600V
  • Rated Current
    10A
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    16-24
  • Applications
    PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR10-01-BM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

7.30mm High Current Terminal Block , 600V 10A Barrier Power Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


7.30mm High Current Terminal Block , 600V 10A Barrier Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers


How to order:
7.30mm High Current Terminal Block , 600V 10A Barrier Power Terminal Blocks 0



Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 10

600 / 10



Wire Range                       AWG

16-24

16-24



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /10

1000 / 10

1000 / 10

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

1.25

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

5-6

Screw / Torque                    / lbf.in

M 3 / 5.3-7



7.30mm High Current Terminal Block , 600V 10A Barrier Power Terminal Blocks 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
