10A 2P-28P Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v

10A 2P-28P Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v

  • 10A 2P-28P Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v
10A 2P-28P Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v
Product Details:
Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TJ381-01
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.054-0.108 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Level: Double Levels Pitch: 3.81mm
Color: Green Current: 10A
Voltage: 300V Screw: Steel
Plastic: PA66 Contact Resistance: Less Than 8mΩ
Rated Surge Voltage: No Abnormal Within 1 Minute Inflammability Class: UL94, V-0
High Light:

Terminal Block Right Angle Wire Inlet

,

300v PA66 Terminal Block

,

PCB Terminal Block 28P



Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P



Detailed product Description:

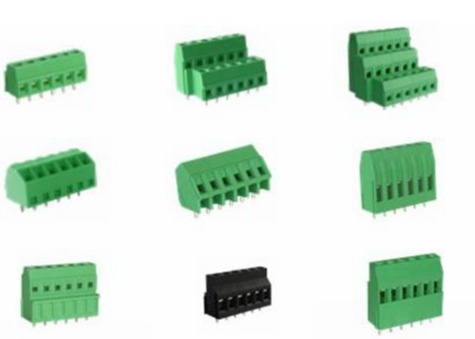

Pitch 3.81mm, 300V 10A, 2P-28P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



■ Right angle wire inlet

■ Double decks

Standard color: Green.

Other colors also available.



Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply

2. Electric Lighting, Industry Control, Automation, Rail Transportation

3. Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10





Wire Range                       AWG

16-24





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.3

Stripping Length                    mm

4-5

Screw / Torque                    / lbf.in

M2 / 1.8-2.0



Competitive Advantage:



1. 10 main series and more than 1000 models for selection

2. Stable good quality

3. Flexible to design the exact part per customers' demand

4. Resonable price

5. Good servide.
