Place of Origin: | Shenzhen, China |
Brand Name: | SCED |
Certification: | UL, CE, CQC |
Model Number: | TR80-01-FaM0-A3 |
Minimum Order Quantity: | 500 |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
High Light: | pcb wire terminals,power terminal block |
---|

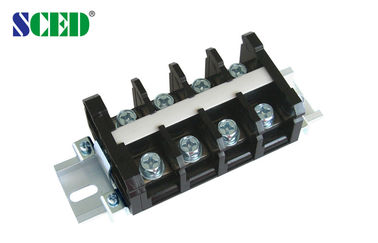

Pitch 20.00mm High Current Terminal connector 600V 80A any poles available
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 80 | 600 / 80 | |
Wire Range AWG | 4-20 | 4-20 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 /80 | 1000 / 80 | 1000 / 80 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 22 | ||
Material | |||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
Stripping Length mm | 12-15 | ||
Screw Torque mm | M6 / 18-22 |
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
