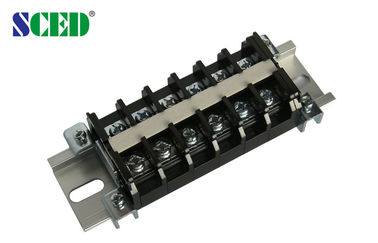

PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector

PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector

    • PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector
    • PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector
  • PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE, CQC
    Model Number: TR30-01-FaM0

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 11.50 Mm Rated Voltage: 600V
    Rated Currennt: 30A Insulation Material: PC
    Color: Black Wire Range: 12-24 AWG

    PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector





    Parameter



    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 30 600 / 30 600 / 5
    Wire Range AWG 10-20 10-20 10-20
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 /30 1000 / 30 1000 / 30
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 3.5
    Material
    Insulation Material / Inflammability Class PC / UL94, V-0
    Conduction Board/ Plating Brass /Nickel Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 10-12
    Screw Torque mm M4 / 10.6-13





    Good service:



    1. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

    2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;

    3. Discount offered is based on qty.

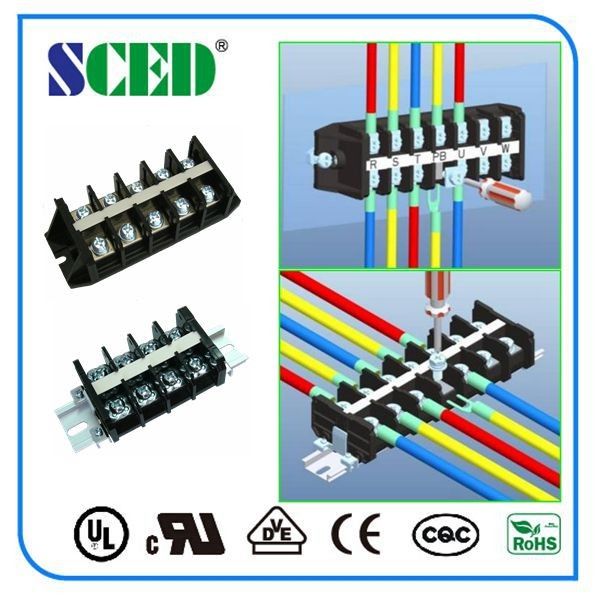

    Drawing photo



    PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector
