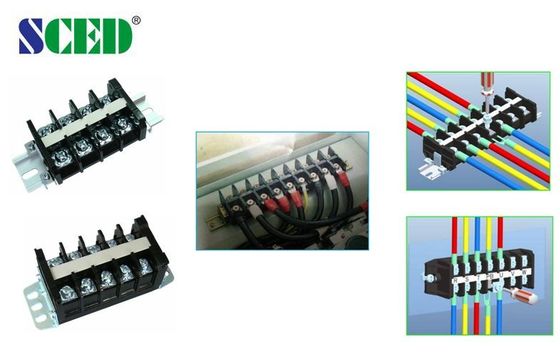

High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector

High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector

    • High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector
    • High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector
    • High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector
  • High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE, CQC
    Model Number: TR60-03-BM0

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 5-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Screw Type Pitch: 18.00mm
    Poles: Any Poles Available Material: PC
    Color: Black, Other Available Key Words: Screw Mount Terminal

    High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector





    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 60 600 / 60
    Wire Range AWG 4-20 4-20
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 /60 1000 / 60 1000 / 60
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 14
    Material
    Insulation Material / Inflammability Class PC / UL94, V-0
    Conduction Board/ Plating Brass /Nickel Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 12-15
    Screw Torque mm M5 / 14-18







    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:



    High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector
