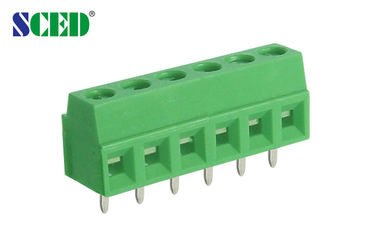

Pitch 3.8mm PCB Mount Terminal Block Connector With Soldering Pin

Pitch 3.8mm PCB Mount Terminal Block Connector With Soldering Pin

  • Highlight

    pcb screw terminal blocks

    ,

    pcb mount terminal block

    ,

    Pitch 3.8mm PCB Mount Terminal Block

  • Type
    PCB Type
  • Pitch
    3.81mm
  • Nom.Voltage
    300V
  • Nom.Current
    10A
  • Color
    Green, Other Color Available
  • Material
    Brass/steel
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ381-08
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard export packing carton
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 3.8mm PCB Mount Terminal Block Connector With Soldering Pin


Pitch 3.8mm PCB Mount Terminal Block Connector With Soldering Pin

Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10





Wire Range                       AWG

16-24





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.3

Stripping Length                    mm

4-5

Screw / Torque                    / lbf.in

M2 / 1.8-2.0
