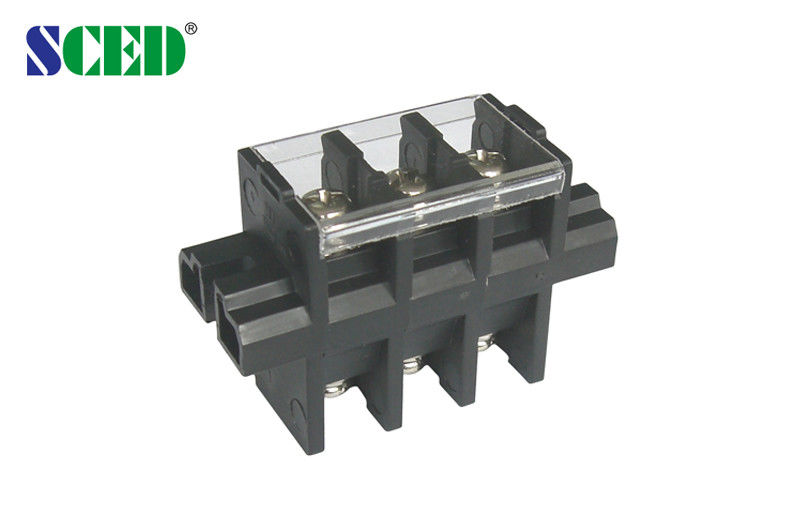

600V PCB Mount Power Terminal Blocks through panel terminal blocks

600V PCB Mount Power Terminal Blocks through panel terminal blocks

Products - Power Terminal Blocks
  • Highlight

    power terminal block connector

    ,

    electric terminal block

    ,

    600V PCB Mount Power Terminal Blocks

  • Type
    Power Terminal Block, PCB Screw Terminal Blocks,Electrical Terminal Blocks
  • Pitch
    21.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    2-20
  • Rated Voltage
    600V
  • Rated Current
    101A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD100-01-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

600V PCB Mount Power Terminal Blocks through panel terminal blocks

  • 600V PCB Mount Power Terminal Blocks through panel terminal blocks
  • 600V PCB Mount Power Terminal Blocks through panel terminal blocks
Get Price Contact Now

Detailed product Description:

Pitch 21.0mm, 600V 101A, Any poles available, Perforation Power Terminal Blocks, Feed Through Terminal Block , Through Panel Terminal Connectors
■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:


600V PCB Mount Power Terminal Blocks through panel terminal blocks 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 101

600 / 101

600 / 5

Wire Range                       AWG

2-20

2-20

2-20

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

1000 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11-12

Screw / Torque                    / lbf.in

M6 / 20-22





600V PCB Mount Power Terminal Blocks through panel terminal blocks 1




Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
