| Place of Origin: | Guangdong, China |
| Brand Name: | SCED |
| Certification: | UL, CE, CUL, CQC and VDE etc. |
| Model Number: | TJ508-18 |
| Minimum Order Quantity: | 1000 Piece/Pieces |
|---|---|
| Price: | USD 0.051-0.120 Per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Wire Range: | 12-24 AWG | Poles: | 2-24 Poles |
|---|---|---|---|
| Screw: | M3 Steel | Pitch: | 5.08mm |
| Current: | 10A | Voltage: | 300V |
| Insulation Material: | PA66 | Inflammability Class: | UL94-V0 |
| Torque: | 4.4-5.3 Lbf.in | Stripping Length: | 6-7mm |
| High Light: | screw type terminal block,screw connection terminal block |
||

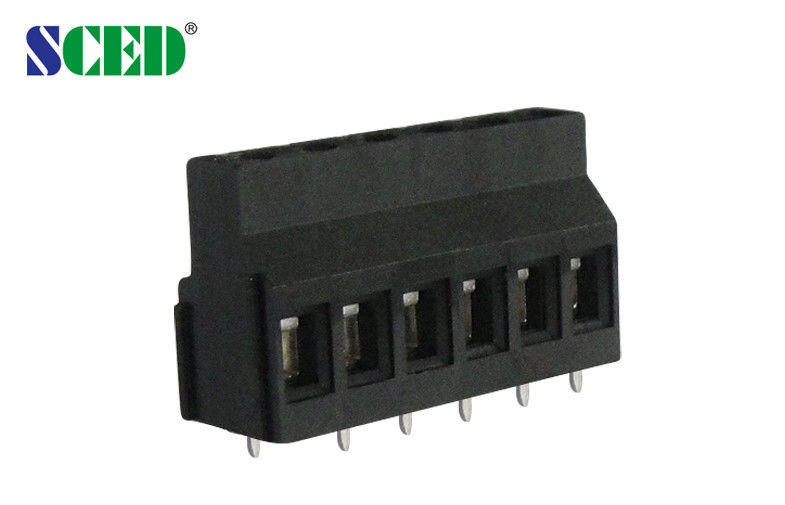

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Applications:
Our products can be used in lots of fileds and industries, such as
1.Power Supply, Communication, Industrial Control, Automation
2.PCB, Electronics, Electric Lighting, Frequency Converters
3. Military, Medical Equipment, Rail Transportation, Security and so on.
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Wire Inlet:■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Decks:■Single Deck; □Double decks; □Triple decks
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:

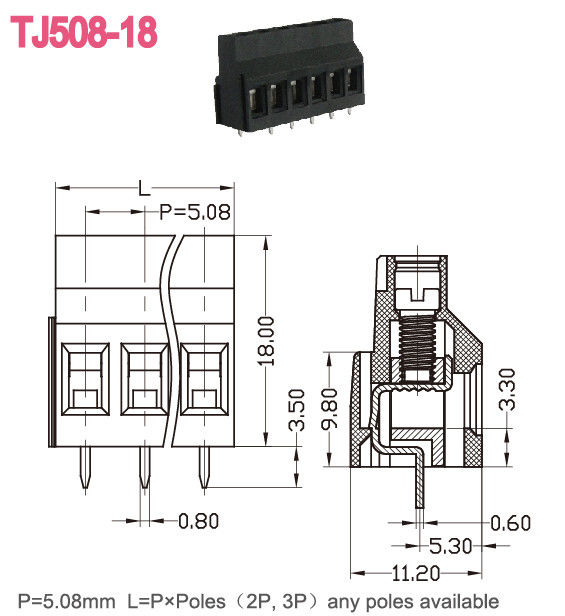

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 10 | 300 / 10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Stripping Length mm | 6-7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
