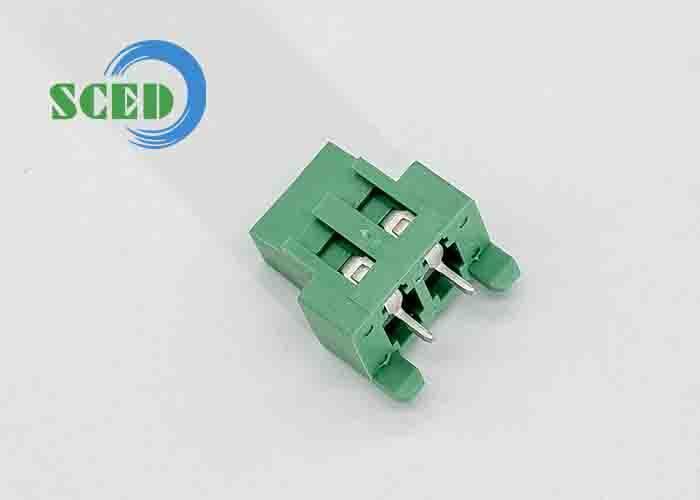

Torque 0.4Nm 3.6Lbin PCB Screw Terminal Block withstanding voltage AC1500/1Min through hole mounting type

Product Description:

The PCB Screw Terminal Block is a versatile and reliable solution for industrial applications requiring secure connections on circuit boards. This high-quality terminal block is designed with durable plastic parts made of PBT material, ensuring excellent performance and safety. The plastic parts are UL94V-0 rated, providing superior flame resistance and protection.

With a temperature range of -40℃ to +105℃, this PCB Mount Screw Terminal Block is suitable for use in a wide range of environments and operating conditions. Whether in extreme cold or heat, this terminal block maintains its reliability and functionality, making it ideal for various industrial applications.

The pin header of this Industrial Screw Terminal Block is constructed from brass and is tin plated, offering excellent conductivity and corrosion resistance. This ensures a secure and stable connection for your circuit board connections, reducing the risk of signal interference or loss.

Designed for easy installation, this Circuit board Screw Terminal Block features a through hole mounting type, allowing for simple and efficient assembly onto circuit boards. The terminal block can be securely mounted in place, providing a stable and secure connection for your wiring needs.

In terms of electrical performance, this PCB Screw Terminal Block offers a high level of safety and reliability. With a withstanding voltage of AC1500/1Min, this terminal block can withstand high voltage levels, ensuring the protection of your circuit board and equipment against electrical faults or surges.

Features:

• Product Name: PCB Screw Terminal Block
• Number Of Poles: 2-24
• Withstanding Voltage: AC1500/1Min
• Plastic Parts: PBT,UL94V-0
• Flammability Rating: UL94V-0
• Termination Style: Screw

Technical Parameters:

Applications:

SCED PCB Mount Screw Terminal Block is a versatile product suitable for a wide range of product application occasions and scenarios. With its high-quality construction and reliable performance, this terminal block is ideal for various electronic applications.

One of the key application scenarios for the SCED PCB Screw Terminal Block is in circuit design and assembly. The terminal block's durable brass terminals and secure screw connections make it perfect for creating secure and stable electrical connections on PCBs. Whether in industrial control systems, power supplies, or automation equipment, this terminal block ensures a reliable connection for your circuits.

Another important area where the SCED Terminal Block excels is in electronic device manufacturing. The product's UL94V-0 rated PBT plastic parts provide excellent flame retardancy, making it a safe choice for electronics applications. Whether you are designing consumer electronics, communication devices, or automotive electronics, this terminal block offers a reliable and secure connection solution.

SCED PCB Mount Screw Terminal Block is also widely used in applications that require a wide operating temperature range. With a temperature range of -40℃ to +105℃, this terminal block can withstand extreme temperature conditions, making it suitable for outdoor equipment, automotive systems, and industrial machinery.

Thanks to its through-hole mounting type, the SCED Terminal Block is easy to install and ensures a secure connection to the PCB. The torque rating of 0.4Nm (3.6Lbin) guarantees a stable connection without the risk of loosening, even in high-vibration environments.

Whether you are a manufacturer of industrial equipment, consumer electronics, or automotive components, the SCED PCB Mount Screw Terminal Block is an essential component for your electrical connections. With CE and ISO9001 certifications, you can trust the quality and reliability of this product. The minimum order quantity of 500 units, flexible payment terms, and fast delivery time of 50 days ensure that you can meet your production deadlines with ease.

Choose SCED PCB Mount Screw Terminal Block for your next project and experience the convenience, reliability, and quality that this product has to offer.

Customization:

Product Customization Services for the Printed Board Screw Terminal Block:

Brand Name: SCED

Place of Origin: Jiangsu, Suzhou

Certification: CE, ISO9001

Minimum Order Quantity: 500

Price: Get latest price

Packaging Details: Carton box

Delivery Time: 50 day(s)

Payment Terms: T/T, AliPay, PayPal

Supply Ability: 100000pcs/day

Temperature Range: -40℃~+105℃

Operating Temperature: -40°C To +105°C

Terminal: Brass

Mounting Type: Through Hole

Wire Range: 26-12 AWG

Product Keywords: Screw-in Terminal Block, PCB Mount Screw Terminal Block

Support and Services:

The Product Technical Support and Services for the PCB Screw Terminal Block include:

- Assistance with product installation and setup

- Troubleshooting guidance for any issues encountered

- Information on product specifications and compatibility

- Product maintenance tips and recommendations

- Warranty information and support

Packing and Shipping:

Product Packaging and Shipping:

Our PCB Screw Terminal Block product comes in a secure and durable packaging to ensure safe delivery. Each terminal block is carefully enclosed in a protective box to prevent any damage during transportation.

For shipping, we use reliable courier services to deliver your order swiftly and securely. You can track your package using the provided tracking number for peace of mind.

FAQ:

Q: What is the Brand Name of the PCB Screw Terminal Block?

A: The Brand Name is SCED.

Q: Where is the Place of Origin for the PCB Screw Terminal Block?

A: The Place of Origin is Jiangsu, Suzhou.

Q: What certifications does the PCB Screw Terminal Block have?

A: The PCB Screw Terminal Block is certified with CE and ISO9001.

Q: What is the Minimum Order Quantity for the PCB Screw Terminal Block?

A: The Minimum Order Quantity is 500 units.

Q: What are the Payment Terms accepted for purchasing the PCB Screw Terminal Block?

A: Payment can be made via T/T, AliPay, or PayPal.
