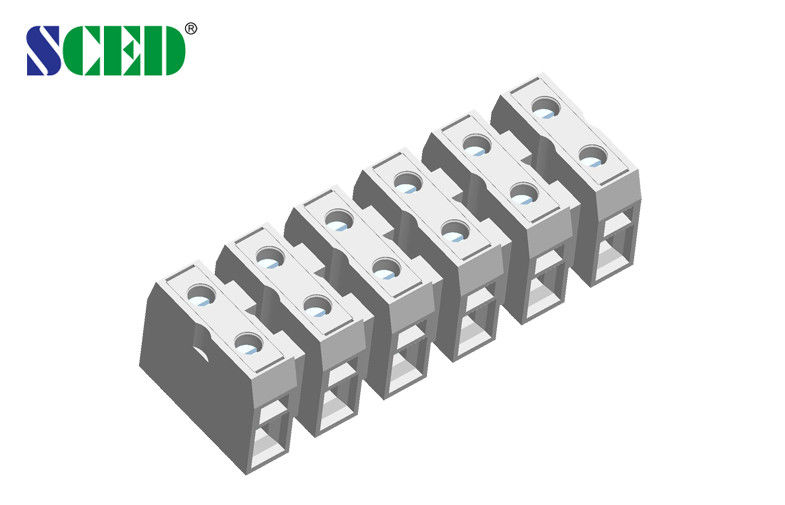

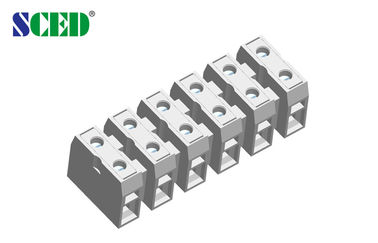

600 V 30A 12.00mm Grey Screw Terminal Connector / power distribution block

600 V 30A 12.00mm Grey Screw Terminal Connector / power distribution block

    • 600 V 30A 12.00mm Grey Screw Terminal Connector / power distribution block
    • 600 V 30A 12.00mm Grey Screw Terminal Connector / power distribution block
    • 600 V 30A 12.00mm Grey Screw Terminal Connector / power distribution block
  • 600 V 30A 12.00mm Grey Screw Terminal Connector / power distribution block

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC,VDE etc.
    Model Number: TR-5N-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.235-0.268 per pole
    Packaging Details: Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Conduction Board: Copper Color: Grey
    Voltage: 600V Current: 30A
    Clamp Cage: Brass Screw: Steel
    Pitch: 12mm Insulation Material: PA66
    Inflammability: UL94 V0 Stripping Length: 6-7



    600 V 30A 12.00mm Grey Screw Terminal Connector / power distribution block



    Detailed product Description:



    Pitch 12.00mm, 600V 30A, 2-16P, Feed-Through Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Grey. Other colors also available.

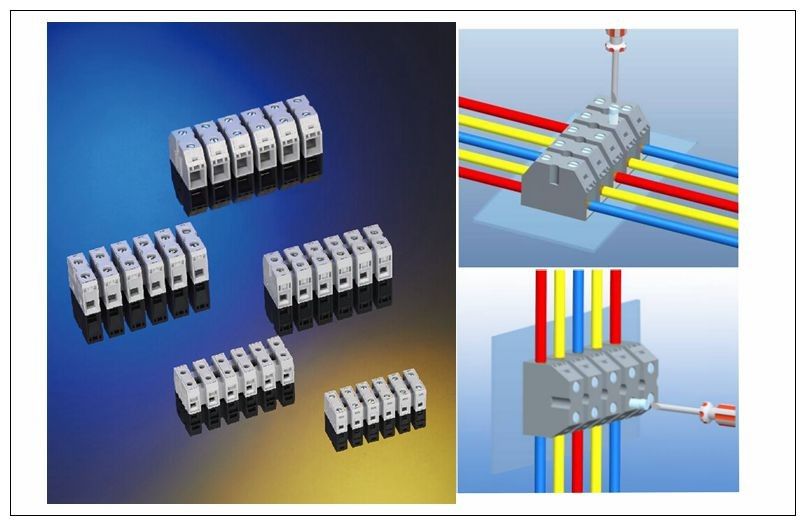

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 30

    600 / 30



    Wire Range                                 AWG

    10-30

    10-30



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    800 / 41

    1000 / 41

    1000 / 41

    Rated Surge Voltage                     KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    6

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Conduction Board / Plating

    Copper / Nickel Plated

    Clamp Cage / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                               mm

    6-7

    Screw / Torque                               / lbf.in

    M3 / 4.4-5.3



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand600 V 30A 12.00mm Grey Screw Terminal Connector / power distribution block
