| Place of Origin: | China |
| Brand Name: | SCED |
| Certification: | UL,CE,CUL,CQC and VDE etc. |
| Model Number: | TR-150N-03F |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 2.546-5.079 PER POLE |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Pitch: | 30mm | Current: | 285A |
|---|---|---|---|
| Poles: | 1-24 | Voltage: | 600V |
| Screw: | M10 | Torque: | 50-60 Lbf.in |
| Insulation Material: | PA66 | Color: | Grey |
| Conduction Board: | Copper | Stripping Length: | 26mm |
| High Light: | wiring terminal block,feed through terminal blocks |
||

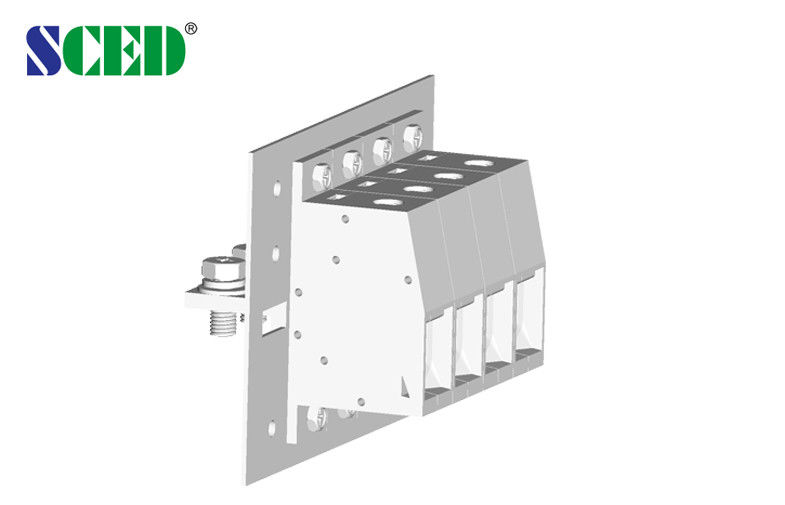

285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors
Detailed product Description:
Pitch 30.0mm, 600V 285A, 1P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Decks: ■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

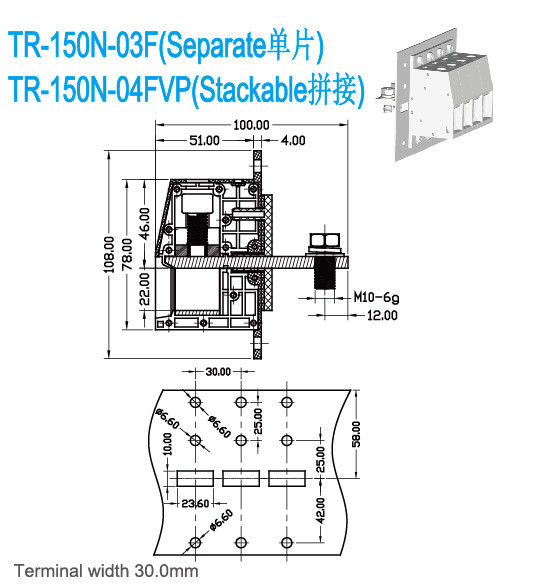

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 285 | ||
| Wire Range AWG | 2-300kcmil | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 309 | 800 / 309 | 1000 / 309 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 150 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Steel / Nickel Plated | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 26 | ||
| Screw / Torque / lbf.in | M10 / 50-60 | ||
Applications:
1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
2.Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.
Competitive Advantage:
