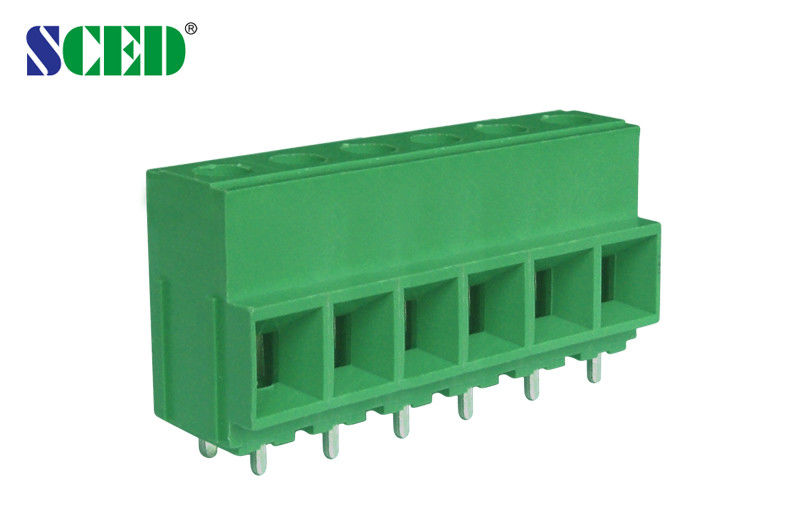

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles

    • 57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles
    • 57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles
  • 57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC and VDE etc.
    Model Number: TJ952-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.114-0.228 PER POLE
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Insulation Material: PA66 Inflammability Class: UL94-V0
    Screw: M4 Torque: 10.6-13 Lbf.in
    Clamp Cage: Brass Poles: 2-16 Poles
    Pitch: 10.16mm Current: 57A
    Voltage: 300V Wire Range: 6-22 AWG

    57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles



    Detailed product Description:



    Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    Wire Inlet:■Right angle wire inlet

    Decks:■Single Deck; □Double decks; □Triple decks

    Standard color: Green.

    Other colors are also available, please refer to below How to Order and select the color you want.



    How to order:



    57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles



    Applications:

    Euro terminal blocks are widely used in industry and automatic control, power, PCB, frequency conversion, electronics and so on.

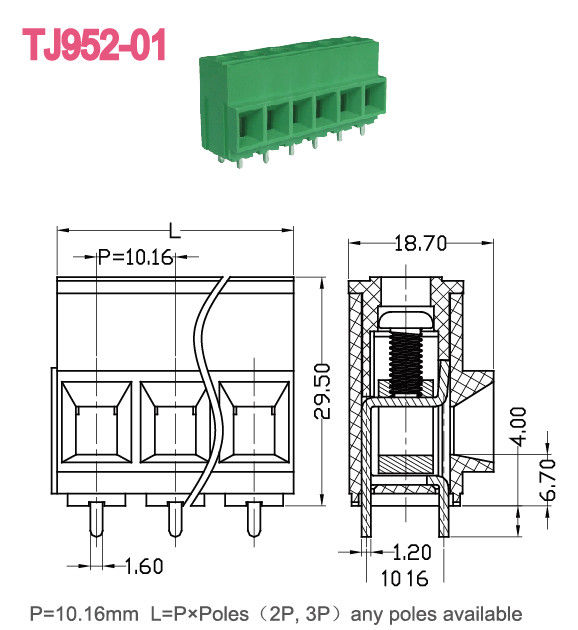

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/57 300/57
    Wire Range AWG 6-22 6-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 690 / 57 1000 / 57 1000 / 57
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 10
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ2.4
    Stripping Length mm 9-11
    Screw / Torque / lbf.in M4 / 10.6-13



    Competitive Advantage:



    1. Full range products for selection
    2. Flexible to design the exact part per customers’ demand
    3. Good service and quick response
    4. OEM and ODM service
    5. Stable good quality and competitive price

    57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles
