Green Terminal Block Connector 300V/10A M3 Screw 6-7mm Stripping Length 12-26AWG

Green Terminal Block Connector 300V/10A M3 Screw 6-7mm Stripping Length 12-26AWG

  • Highlight

    barrier terminal block connector

    ,

    pcb terminal block connector

  • Wire Range
    12-26 AWG
  • Screw
    M3
  • Stripping Length
    6-7mm
  • Pitch
    5.08mm
  • Current
    10A
  • Voltage
    300V
  • Clamp Cage
    Brass
  • Inflammability Class
    UL94-V0
  • Insulation Material
    PA66
  • Poles
    2-24 Poles
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    TJ508-16
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.05-0.12 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Green Terminal Block Connector 300V/10A M3 Screw 6-7mm Stripping Length 12-26AWG

Green Terminal Block Connector 300V/10A M3 Screw 6-7mm Stripping Length 12-26AWG



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series

Wire Inlet: ■Right angle wire inlet

Decks: ■Single Deck

Standard color: Green.

Other colors are also available, please refer to below How to Order and select the color you want.



How to order:

Green Terminal Block Connector 300V/10A M3 Screw 6-7mm Stripping Length 12-26AWG 0

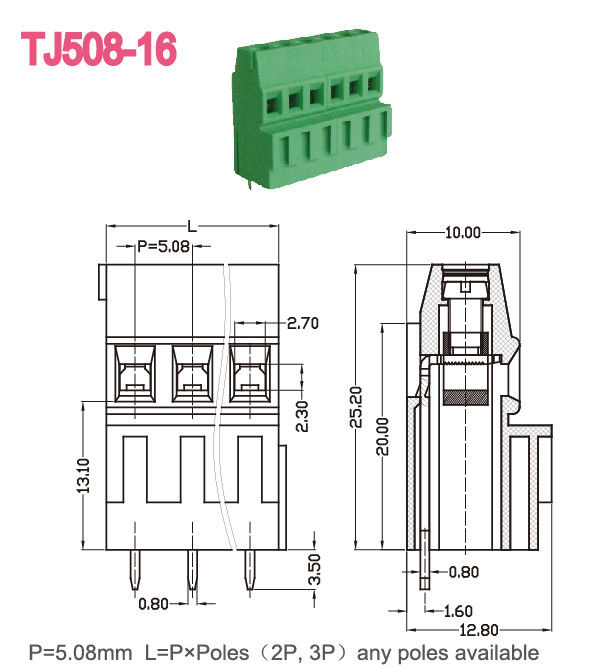

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 10   300 / 10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:





  1. Flexible to design the exact part per customers’ demand
  2. More than 1000 models for selection
  3. High and stable quality
  4. Competitive price

Applications:

Generally speaking, our products are used in a lot of fileds and industries, for example: Security, Industrial Control, Power Supply, Medical Equipment, Military, Electonics, PCB and so on.

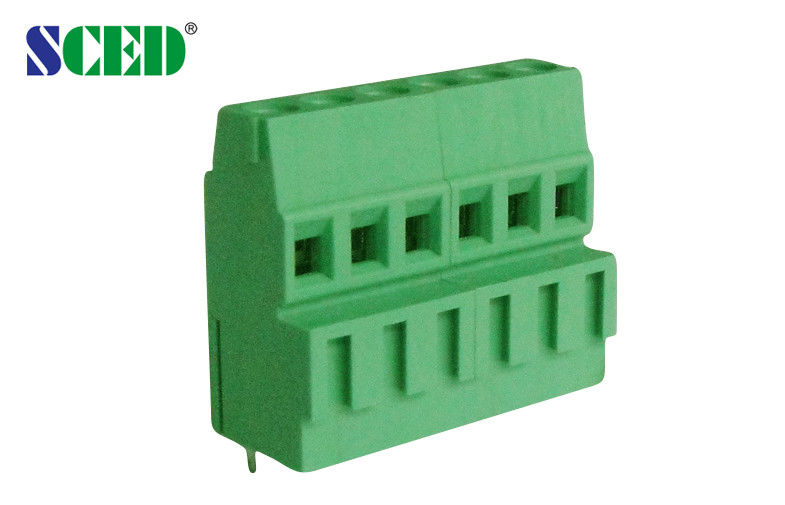

Green Terminal Block Connector 300V/10A M3 Screw 6-7mm Stripping Length 12-26AWG 1
