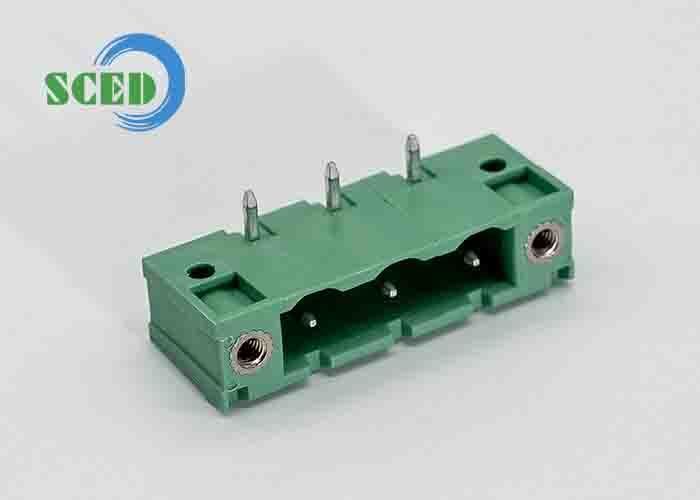

Tin Plated Terminal Block Connector Supporting Temperature Range Minus 40 to 105 Celsius Ideal for Electrical Circuit Connections

Product Description:

The Terminal Block Connector is a highly reliable and versatile component designed to provide secure and efficient electrical connections in various applications. Engineered to operate within a wide temperature range of -40°C to 105°C, this connector ensures stable performance even in demanding environments, making it suitable for both industrial and commercial use.

Rated at 300V and 8A, the Terminal Block Connector is built to handle moderate voltage and current levels, providing a safe and dependable connection point for electrical circuits. Its female gender design facilitates easy integration with corresponding male connectors, ensuring a seamless and secure mating process. This feature is particularly beneficial in applications requiring frequent assembly and disassembly, as it minimizes wear and tear while maintaining connection integrity.

One of the standout features of this connector is its terminal, which is finished with a gold flash plating. The gold flash terminal not only enhances conductivity but also provides excellent corrosion resistance, ensuring long-lasting and stable electrical connections. This is especially important in environments where connectors may be exposed to moisture or other corrosive elements, as it helps maintain optimal performance over time.

The Terminal Block Connector is ideally suited for use in LED lamp applications. LED lighting systems demand reliable and efficient electrical connections to function correctly, and this connector meets those requirements with ease. Its robust design and secure connection capabilities help ensure that LED lamps operate smoothly without flickering or interruptions caused by poor connectivity.

In addition to its primary use in LED lamps, this connector is also compatible with various electrical setups requiring a Terminal Block Plug or Terminal Block Cable. These components are essential in creating modular and organized wiring systems, allowing for straightforward installation, maintenance, and troubleshooting. The Terminal Block Connector’s compatibility with these elements makes it a valuable addition to any electrical toolkit.

The connection terminal block design of this product emphasizes ease of use and reliability. With clear labeling and a straightforward wiring process, electricians and technicians can quickly establish secure connections, reducing installation time and minimizing the risk of wiring errors. This user-friendly design is crucial in large-scale projects where efficiency and accuracy are paramount.

Moreover, the Terminal Block Connector’s compact and sturdy construction allows it to fit into tight spaces without compromising performance. This makes it an excellent choice for applications where space is limited, such as in compact LED lighting fixtures or control panels. Its durability ensures that it can withstand mechanical stress and vibration, further extending its service life.

In summary, the Terminal Block Connector is a dependable and efficient solution for a wide range of electrical connection needs. Its ability to operate within a broad temperature range, combined with its 300V and 8A rating, female gender design, and gold flash terminals, make it particularly well-suited for LED lamp applications. The product’s compatibility with Terminal Block Plugs and Terminal Block Cables enhances its versatility, while its connection terminal block design ensures ease of installation and maintenance. Whether used in industrial, commercial, or residential settings, this connector offers a robust and reliable connection that supports the optimal performance of electrical systems.

Features:

• Product Name: Terminal Block Connector
• Connection Terminal Block with rated voltage of 300V and current of 8A
• Supports rated current range from 5A to 20A
• Termination Style: Screw for secure and reliable connections
• Current capacity up to 10A

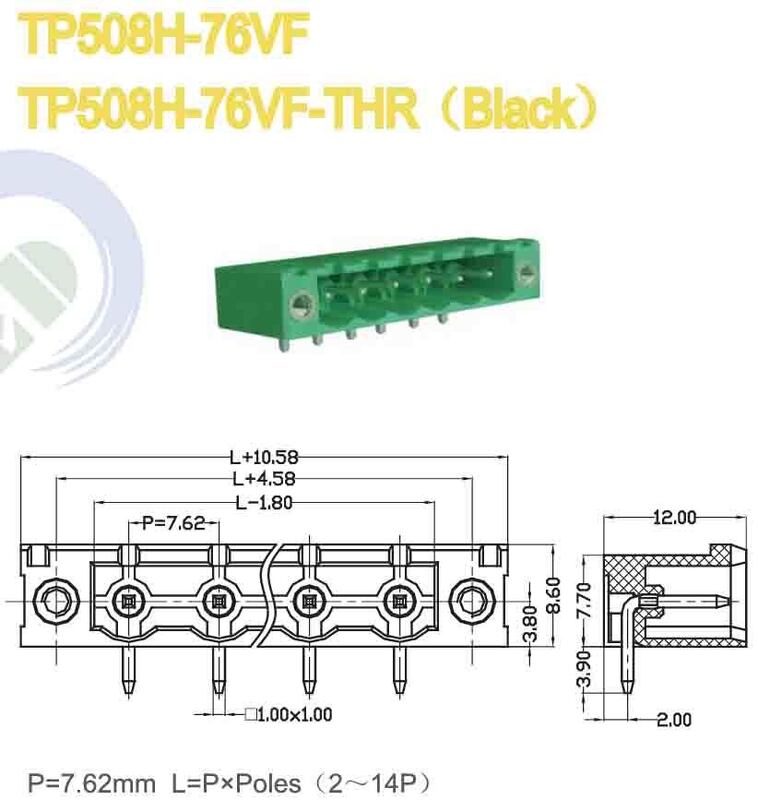

• Pin Spacing: 7.5mm for compact and efficient wiring
• Ideal for use as Block Connector Terminal in various electrical applications
• Compatible with Terminal Block Cable for easy installation and maintenance

Technical Parameters:

Applications:

The SCED Terminal Connector Block, manufactured in Jiangsu, Suzhou, is a high-quality and reliable solution designed to meet various electrical connection needs. Certified by CE and ISO9001, this Connector Terminal Block ensures excellent safety and performance standards, making it suitable for a wide range of industrial and commercial applications. With a rated current capacity ranging from 5A to 20A, it is ideal for handling moderate electrical loads efficiently and safely.

One of the key application occasions for the SCED Terminal Connector Block is in electrical control panels. Here, the Terminal Block Connection provides a secure and organized way to connect multiple wires, facilitating easy maintenance and troubleshooting. The screw termination style ensures a firm and stable connection, which is essential in environments where vibrations or movements could otherwise loosen connections. This makes it perfect for use in manufacturing plants, automation systems, and machinery control systems.

In residential and commercial building wiring, the SCED Connector Terminal Block is widely used to connect electrical circuits safely and effectively. Its tin-plated finish offers excellent corrosion resistance, ensuring long-term durability and reliability in various environmental conditions. With options ranging from 2 to 20 pins, this Terminal Block Connection can accommodate different wiring configurations, from simple single-circuit connections to complex multi-circuit setups.

The SCED Terminal Connector Block's versatility also extends to renewable energy systems, such as solar power installations, where dependable electrical connections are critical. Its robust design and high supply ability of 100,000 pieces per day allow for bulk orders with a minimum order quantity of 500 units, packaged securely in carton boxes. Delivery time is approximately 50 days, with flexible payment terms including T/T, AliPay, and PayPal, allowing for convenient procurement processes.

Overall, the SCED Terminal Connector Block is an excellent choice for anyone seeking a dependable Terminal Connector Block solution that combines quality, safety, and flexibility. Whether used in industrial automation, building wiring, or renewable energy systems, this Connector Terminal Block guarantees a stable and efficient Terminal Block Connection that meets modern electrical standards. For pricing, please get the latest price to ensure you receive the best offer tailored to your order quantity and requirements.

Customization:

SCED offers customized Connector Terminal Block solutions designed to meet your specific requirements. Originating from Jiangsu, Suzhou, our Block Connector Terminal products are certified with CE and ISO9001, ensuring high quality and reliability. With a supply ability of 100,000 pcs per day, we can fulfill large orders efficiently, with a minimum order quantity of 500 pieces.

Our Terminal Block Connector features a removable jumper and supports pin configurations ranging from 2 to 20 pins, with a standard pin spacing of 7.5mm. These Block Connector Terminals operate reliably within a temperature range of -40°C to 105°C, making them ideal for applications such as LED lamps.

We package our products securely in carton boxes to ensure safe delivery. The delivery time is approximately 50 days, and we offer flexible payment terms including T/T, AliPay, and PayPal. For pricing details, please contact us to get the latest price on our Connector Terminal Block products.

Support and Services:

Our Terminal Block Connector product is designed to ensure reliable and secure electrical connections for a wide range of applications. For optimal performance and longevity, it is important to follow the recommended installation and maintenance guidelines.

Ensure that all wiring is performed by qualified personnel and that the connector is used within its specified electrical and mechanical ratings. Regular inspections should be conducted to check for signs of wear, corrosion, or loose connections.

If you encounter any issues with the Terminal Block Connector, please refer to the product manual for troubleshooting steps. Common issues may include improper wire stripping, exceeding current ratings, or incorrect mounting.

We offer comprehensive technical support services to assist with product selection, installation guidance, and troubleshooting. Our support team is equipped to provide detailed technical information and solutions tailored to your application needs.

For maintenance, always disconnect power before performing any work on the connectors. Use appropriate tools to avoid damage to the terminals and ensure that connections are tight and secure to prevent electrical faults.

Replacement parts and accessories compatible with the Terminal Block Connector are available to ensure seamless integration and continued operation of your systems.

We are committed to providing high-quality products and support to help you achieve reliable and efficient electrical connections in your projects.

Packing and Shipping:

Each Terminal Block Connector is carefully packaged to ensure maximum protection during transit. The connectors are placed in anti-static bags to prevent any electrostatic damage, followed by secure cushioning materials such as foam or bubble wrap to avoid physical impact.

The packaged products are then organized into sturdy cardboard boxes, with appropriate labeling that includes product details, quantity, and handling instructions. For larger orders, multiple boxes are palletized and shrink-wrapped to enhance stability and ease of handling.

Shipping is carried out through reliable courier services, ensuring timely delivery and tracking availability. We offer various shipping options, including standard, expedited, and freight shipping, to meet customer requirements worldwide.

Before dispatch, all packages undergo a thorough quality check to confirm that the correct products and quantities are included, and that packaging standards are met to guarantee customer satisfaction upon receipt.

FAQ:

Q1: What is the brand name of the Terminal Block Connector?

A1: The Terminal Block Connector is branded as SCED.

Q2: Where is the Terminal Block Connector manufactured?

A2: It is manufactured in Jiangsu, Suzhou.

Q3: What certifications does the Terminal Block Connector have?

A3: The product is certified with CE and ISO9001.

Q4: What is the minimum order quantity for the Terminal Block Connector?

A4: The minimum order quantity is 500 pieces.

Q5: How is the Terminal Block Connector packaged for delivery?

A5: The product is packaged in a carton box.

Q6: What are the payment terms available for purchasing the Terminal Block Connector?

A6: Payment can be made via T/T, AliPay, or PayPal.

Q7: What is the delivery time for orders of the Terminal Block Connector?

A7: The delivery time is approximately 50 days.

Q8: What is the supply ability of the Terminal Block Connector?

A8: The supply ability is 100,000 pieces per day.

Q9: How can I get the latest price for the Terminal Block Connector?

A9: Please contact the supplier directly to get the latest price information.
