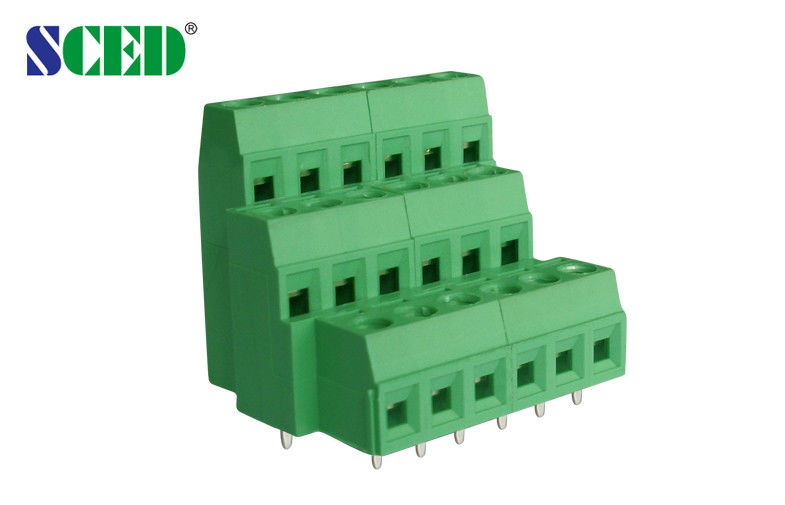

Triple Levels PCB Mount Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass

Triple Levels PCB Mount Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass

    • Triple Levels PCB Mount Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass
    • Triple Levels PCB Mount Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass
  • Triple Levels PCB Mount Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: CE, UL, CUL, CQC and VDE etc.
    Model Number: TJ508-02

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.09-0.15 PER POLE
    Packaging Details: Standard export packing carton, or according to customers demand.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Levels: Triple Levels Color: Green
    Pitch: 5.08mm Insulation Resistance: Above DC500V, 500MΩ
    Rated Surge Voltage: No Abnormal Within 1 Minute Screw: M3
    Torque: 4.4-5.3 Lbf.in Plastic: PA66
    Inflammability Class: UL94-V0 Current: 10A

    Triple Levels PCB Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass



    Detailed product Description:



    Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series

    Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    Decks:□Single Deck; □Double decks; ■Triple decks

    Standard color: Green.

    Other colors are also available, please refer to below How to Order and select the color you want.



    How to order:

    Triple Levels PCB Mount Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass



    Applications:



    Our products can be used in lots of fields and industries, such as: Medical Equipment, Military, Security, Power Supply, Communication, Industrial Control, Automation, PCB, Frequency Converters etc.

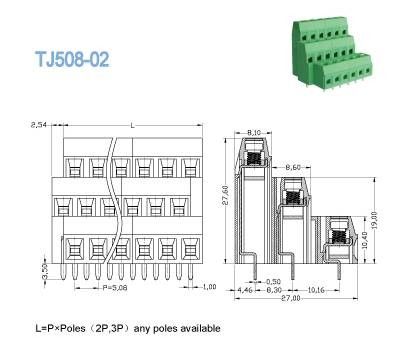

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 10   300 / 10
    Wire Range AWG 12-26   12-26
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 1.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ1.4
    Stripping Length mm 6-7
    Screw / Torque / lbf.in M3 / 4.4-5.3



    Competitive Advantage:



    1. More than 1000 models for selection
    2. High and stable quality
    3. Competitive price
    4. R&D abilities



    Triple Levels PCB Mount Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass
