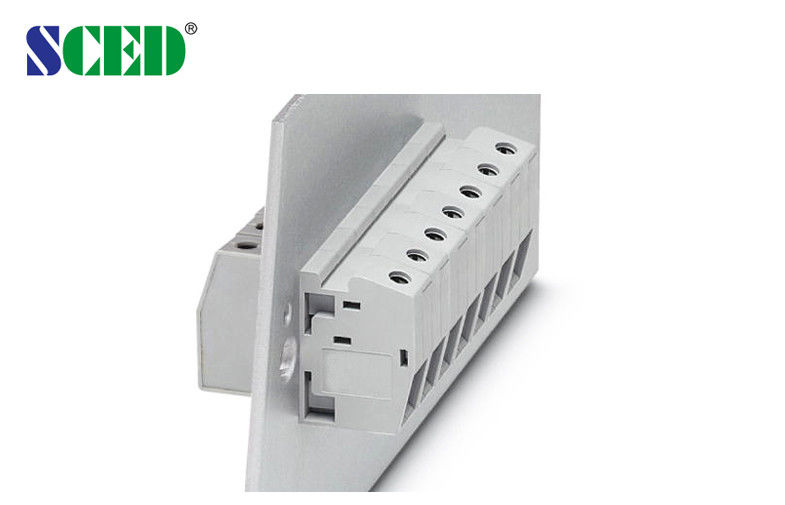

10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V

10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V

    • 10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V
    • 10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V
    • 10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V
  • 10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC,VDE
    Model Number: TR-10N-04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.1-0.25
    Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
    Delivery Time: 5-20 Work Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Grey Insulation Material: PA66
    Voltage: 300V Current: 65A
    Terminal Width: 10.1mm Material: Brass
    Plating: Nickel Plating Inflammability Class: UL94, V-0

    10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V



    Detailed product Description:



    Pitch 10.1mm, 300V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors



    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



    Applications:



    1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

    2. Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 65



    300 / 10

    Wire Range                               AWG

    6-24



    6-24

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current               V/A

    630 / 76

    800 / 76

    1000 / 76

    Rated Surge Voltage                     KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    10

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    11

    Screw / Torque                    / lbf.in

    M4 / 10.6-13



    Competitive Advantage:



    Stable good quality

    Competitive price

    Quickly response

    Full range products for selection

    Flexible to design the exact part per customers’ demand

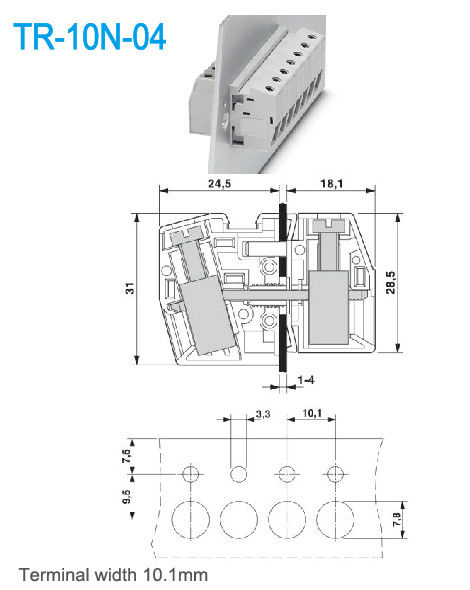

    Drawing Photo:



    10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V
