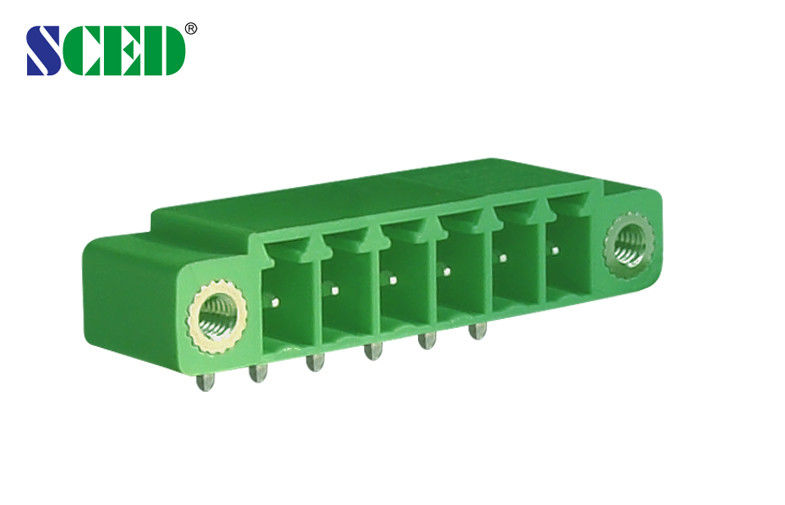

300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P

300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P

    • 300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P
    • 300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P
    • 300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P
  • 300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE

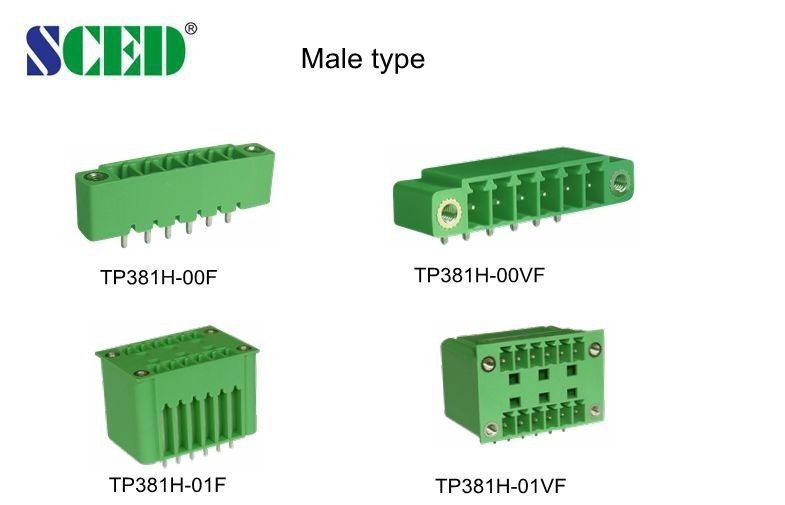

    Model Number: TP381H-00VF

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Get latest price
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 3.81mm Color: Green
    Poles: 2-20 P Material: PA66
    Terminal: Brass Key Words: Pluggable Male Terminal

    300V 8A Male Pluggable Terminal Block Vertical Wire Inlet Brass Terminal Pitch 3.81mm 2P-20P





    Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Level; □Double Levels; □Triple Levels





    Parameter:



    UL Technical Data B C D
    Rated Voltage / Current V/A 300/8
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
    Rated Surge Voltage KV 2.5 2.5 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.2
    Pin Dimension mm

    0.8 x 0.8





    300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Competitive Advantage:



    • Stable good quality
    • Competitive price
    • Quickly response
    • Full range products for selection
    • Flexible to design the exact part per customers’ demand





    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    300V 8A Male Pluggable Brass Terminal Block Vertical Wire Inlet Pinch 3.81mm 2P-20P
