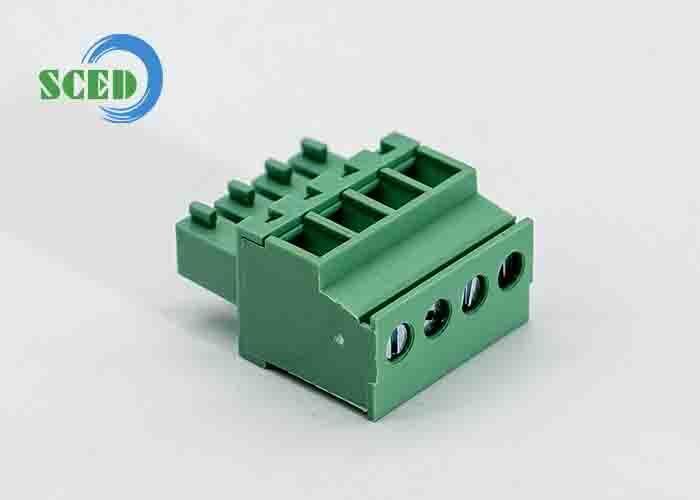

UL94 V-0 Inflammability Pluggable Terminal Block with M2 Screw for 18A Current Rating in High Safety Electrical Systems
-
ScrewM2
-
MaterialPolyamide (PA66) Housing
-
TypeFemale Parts
-
Inflammability ClassUL94, V-0
-
Pitch3.5mm / 5.0mm / 5.08mm / 7.62mm
-
Current Rating18A
-
Metal PartsBrass
-
PlatingZinc Plated
-
Brand NameSCED
-
CertificationUL, CE, ISO9001
-

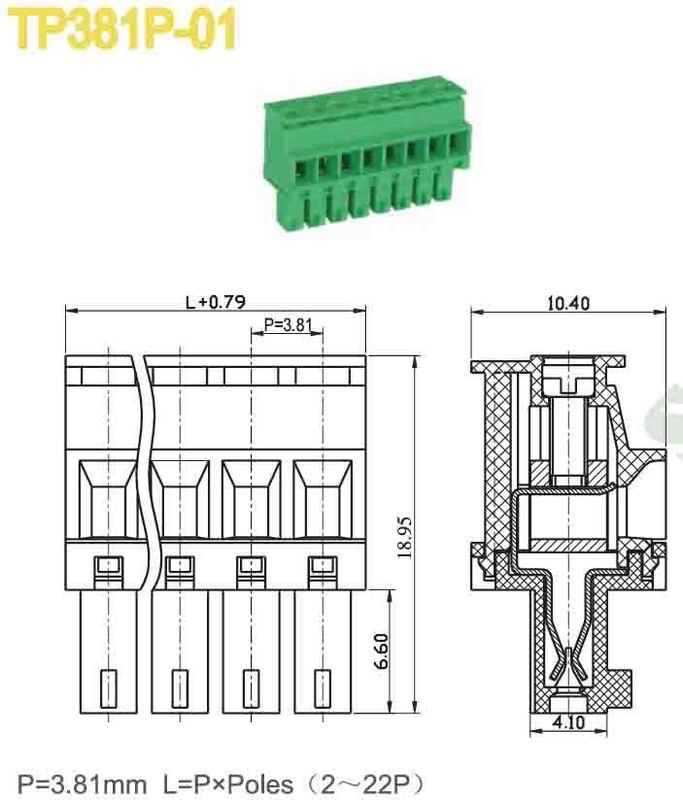

Model NumberTP381P-01
-
Minimum Order Quantity500
-
PriceGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
UL94 V-0 Inflammability Pluggable Terminal Block with M2 Screw for 18A Current Rating in High Safety Electrical Systems
UL94 Inflammability Class Pluggable Connector
A high-performance pluggable terminal block featuring M2 screw connections, designed for high-safety electrical systems and demanding operational environments. This connector ensures reliable and secure electrical connections with excellent performance characteristics.
Product Overview
The Pluggable Terminal Block is an essential connector designed to provide reliable and secure electrical connections in a wide range of applications. Engineered with precision and manufactured to meet stringent industry standards, this connector is an ideal choice for both industrial and commercial electrical systems.
Featuring a robust design and high-quality materials, the Pluggable Terminal Block ensures optimal performance and safety in demanding environments. With a current rating of 16A, it's suitable for various electrical circuits requiring stable and efficient power transmission.
Key Features
- Connector type: Pluggable Terminal Block for easy and secure connections
- Material: Durable Polyamide (PA66) housing ensuring high mechanical strength
- Plating: Zinc plated for enhanced corrosion resistance and longevity
- Rated Current: Supports up to 18A for reliable electrical performance
- Available Pitch options: 3.5mm, 5.0mm, 5.08mm, and 7.62mm to fit various applications
- Certifications: Compliant with UL, CE, and RoHS standards for safety and environmental compliance
- Design: Pluggable feature allows easy installation and maintenance
Technical Specifications
| Parameter | Value |
|---|---|
| Current | 16A |
| Inflammability Class | UL94, V-0 |
| Screw | M2 |
| Type | Female Parts |
| Certifications | UL, CE, RoHS |
| Insulation Material | PA66 |
| Operating Temperature Range | -40°C To +105°C |
| Material | Polyamide (PA66) Housing |
| Voltage | 150V |
| Rated Current | 18A |
Applications
The SCED Pluggable Terminal Block is widely used in industrial control systems, automation equipment, electrical panels, and machinery wiring. Its robust polyamide (PA66) housing offers excellent insulation and mechanical strength for demanding environments.
Additional applications include renewable energy systems (solar power installations, wind turbines), transportation systems (railway signaling, automotive electronics), and various electronic assemblies where reliable and efficient electrical connections are crucial.
Customization Options
SCED offers comprehensive product customization services for our Pluggable Terminal Block. Customization options include terminal blocks with rated current of 18A available in 2 to 20 poles. Metal parts are made of durable brass for excellent conductivity and long-lasting performance.
Minimum order quantity: 500 pieces. Packaging in secure carton boxes with supply capacity of 100,000 pieces per day. Delivery time: approximately 50 days. Payment options: T/T, AliPay, and PayPal.
Support & Services
We provide comprehensive technical support for installation, troubleshooting, and maintenance. Our team assists with compatibility, wiring configurations, and product specifications. Detailed documentation including datasheets, wiring diagrams, and installation guides is available.
Additional services include product training, on-site consultation, and repair or replacement options under warranty terms to ensure optimal performance throughout the product lifecycle.
Packing & Shipping
Each Pluggable Terminal Block is carefully packaged in anti-static bags with custom-fitted foam inserts within sturdy cardboard boxes. Bulk orders feature additional padding in larger boxes to prevent movement and impact damage.
We use reliable shipping partners with tracking information provided for all shipments. All packages are clearly labeled with product details and handling instructions for smooth logistics.
Frequently Asked Questions
What certifications does the SCED Pluggable Terminal Block have?
The SCED Pluggable Terminal Block is certified with UL, CE, and ISO9001, ensuring high quality and safety standards.
Where is the SCED Pluggable Terminal Block manufactured?
The SCED Pluggable Terminal Block is manufactured in Suzhou, China.
What is the minimum order quantity for the SCED Pluggable Terminal Block?
The minimum order quantity for the SCED Pluggable Terminal Block is 500 pieces.
What are the payment options available for purchasing the SCED Pluggable Terminal Block?
We accept T/T, AliPay, and PayPal as payment methods for purchasing the SCED Pluggable Terminal Block.
How long does delivery take for the SCED Pluggable Terminal Block?
The delivery time for the SCED Pluggable Terminal Block is approximately 50 days.
