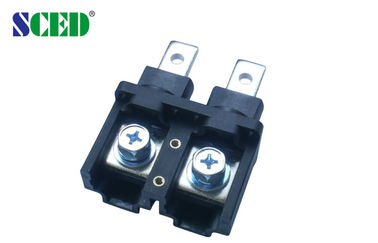

600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm

600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm

    • 600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
    • 600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
  • 600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-50N-05

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 100K poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
    Number Of Contacts: 2P Pitch: 32.00mm
    Rated Current: 160A Rated Voltage: 600V
    Type: Through Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors Wire Range: 22-2/0

    600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    Single Deck;  Double decks;  □Triple decks
    Standard color: Black. Other colors also available, please refer to below How to Order and select the color

     you want.

    Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
    terminal block connectors

    How to order:
    600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
    Military, Elevator, etc..


    Parameter



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 160





    Wire Range                                AWG

    22-2/0





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    630 / 160

    800 / 160

    1000 / 160

    Rated Surge Voltage                      KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    70

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating



    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    1

    Screw / Torque                    / lbf.in

    M8 / 32-40



    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand



    Drawing Photo:



    600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
