| Place of Origin: | Guangdong,China |
| Brand Name: | SCED |
| Certification: | UL,CE |
| Model Number: | TP508P-76F |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.04-0.088 PER Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Pitch: | 7.62mm | Color: | Green |
|---|---|---|---|
| Type: | Female Parts | Current: | 18A |
| Voltage: | 300V | Plastic: | PA66 |
| Metal Parts: | Brass | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Inflammability Class: | UL94, V-0 | Insulation Resistance: | Above DC500V, 500MΩ |
| High Light: | electrical terminal blocks,plug in terminal block |
||

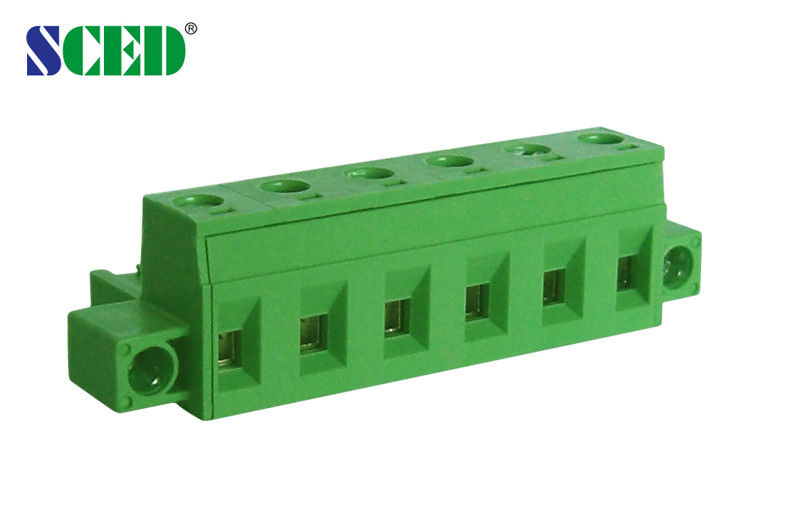

Pitch 7.62mm Pluggable Terminal Block Brass Green Female Parts With Flange
Detailed product Description:
Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-14P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-76F, TP508H-76VF
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| Wire Range AWG | 12-30 | 12-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Contactor / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
