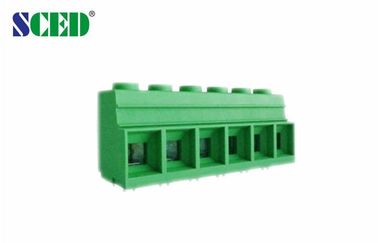

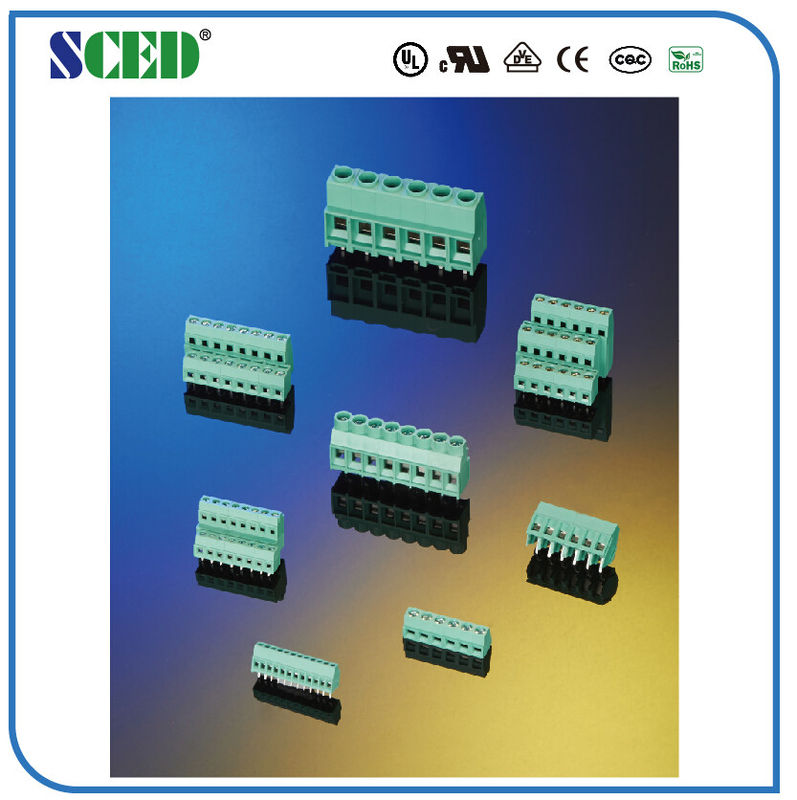

2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector

2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector

  • 2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector
  • 2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector
2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ1500-00
Payment & Shipping Terms:
Minimum Order Quantity: 300PCS
Price: USD 0.5-0.6 / Pole
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1.2KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
Number Of Contacts: 2-9 Poles Pitch: 15.00mm
Rated Current: 115A Rated Voltage: 600V
Wire Range: 2-20 AWG Material Housing: PA66
High Light:

screw connection terminal block

,

screw type terminal block

Pcb Screw Terminal Block 15.00mm 115A Hign Current Terminal Connector 2 - 9 pin

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color:Green. Other colors also available, please refer to below How to Order and select the color you

 want.

Tag:
PCB terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer


How to order:
2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector 0


Applications:

PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication,
Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 115





Wire Range                               AWG

2-20





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

1000 / 125

1000 / 125

1000 / 125

Rated Surge Voltage                     KV

8

8

8

Rated Connecting Capacity           mm2

35

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel /Zinc Plated

Terminal / Plating

Copper / Tin Plated

Screw / Plating Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ2.0

Stripping Length                    mm

18

Screw / Torque                     / Ibf.in M5 / 18-22



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand



​Drawing Photo



2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector 1
