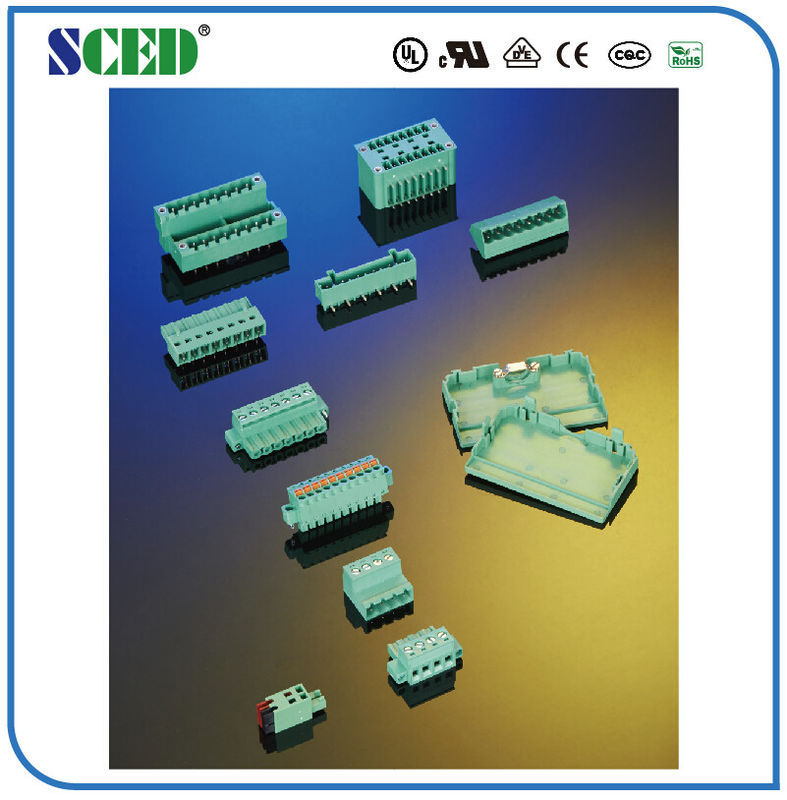

Pitch 5.08mm Electrical Terminal Blocks M3 Screw 300V/18A Female Parts

Pitch 5.08mm Electrical Terminal Blocks M3 Screw 300V/18A Female Parts

  • Pitch 5.08mm Electrical Terminal Blocks M3 Screw 300V/18A Female Parts
  • Pitch 5.08mm Electrical Terminal Blocks M3 Screw 300V/18A Female Parts
  • Pitch 5.08mm Electrical Terminal Blocks M3 Screw 300V/18A Female Parts
Pitch 5.08mm Electrical Terminal Blocks M3 Screw 300V/18A Female Parts
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: UL,CUL,CE,CQC and VDE etc.
Model Number: TP508P-00
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.045-0.09 per pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 working days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Pitch: 5.08mm Poles: 2-24 Poles
Color: Green Type: Female Parts
Voltage: 300V Current: 18A
Plastic: PA66 Metal Parts: Brass
Inflammability Class: UL94, V-0
High Light:

electrical terminal blocks

,

plug in terminal block

Pitch 5.08mm Pluggable Terminal Blocks M3 Screw 300V/18A Female Parts



Detailed product Description:



Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-24P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



■Single Level;  □Double Levels;  □Triple Levels



This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06



Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 18

Wire Range                       AWG

12-30



12-30

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

630 / 18

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. OEM and ODM service

Pitch 5.08mm Electrical Terminal Blocks M3 Screw 300V/18A Female Parts 0
