| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TJ381-11 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2KK poles each monthly |
| Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Green |
|---|---|---|---|
| Number Of Contacts: | 2P-28P | Rated Current: | 10A |
| Rated Voltage: | 300V | Type: | Screw Clamp Style |
| Pitch: | 3.81mm | Degree: | 45 Degree Wire Inlet |
| High Light: | screw type terminal block,screw connection terminal block |
||
Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm
Detailed
Pitch 3.81mm,
300V 10A, 2P-28P,
PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Spec.
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks

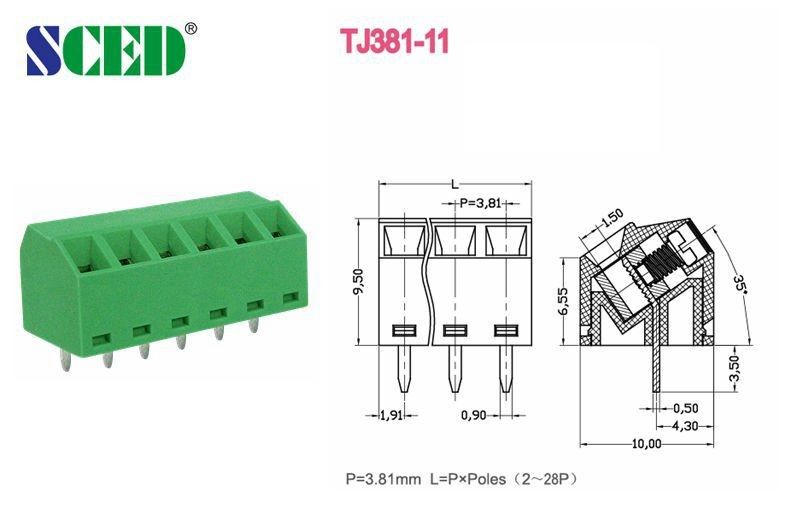

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
|
|
Wire Range AWG |
16-24 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 10 |
200 / 10 |
400 / 10 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.0 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2 |
||
|
Stripping Length mm |
4-5 |
||
|
Screw / Torque / lbf.in |
M2 / 1.8-2.0 |
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:
Drawing:
Tag:
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer
