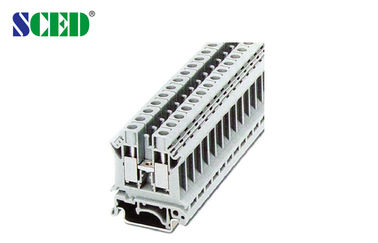

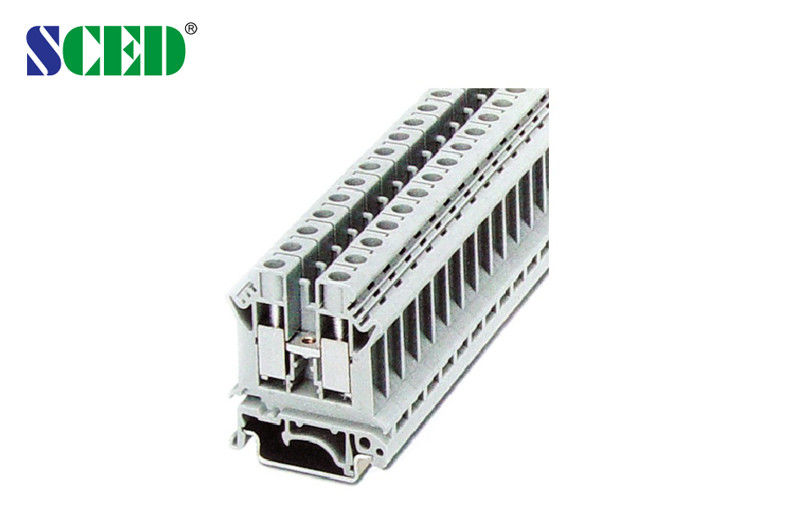

16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length

16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length

    • 16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length
    • 16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length
    • 16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length
  • 16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC and VDE etc.
    Model Number: TR-10N

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.215-0.501
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Terminal Width: 10.2mm Current: 76A
    Voltage: 600V Stripping Length: 10mm
    Material: Brass Inflammability Class: UL94, V-0
    Contact Resistance: Less Than 8mΩ Insulation Resistance: Above DC500V, 500MΩ
    Rated Surge Voltage: No Abnormal Within 1 Minute Wire Range: 24-6AWG

    16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length



    Detailed product Description:



    Terminal width: 10.2mm, 600V 65A, AWG:24-6, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available.



    Applications:

    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

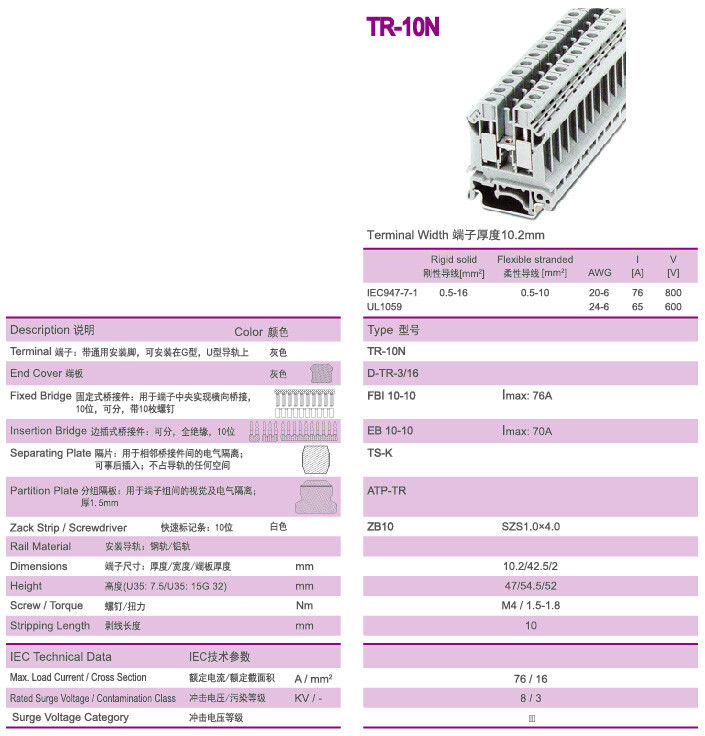

    Parameter and Drawing Specifications:

    Description                    Color

    Type

    Terminal                       Grey

    TR-10N

    16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping LengthEnd Cover                      Grey



    D-TR-3/16

    16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping LengthFixed Bridge



    FBI 10-10        Imax: 76A

    16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping LengthInsertion Bridge



    EB 10-10         Imax: 76A

    16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping LengthSeparating Plate



    TS-K

    16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping LengthPartition Plate



    ATP-TR

    Zack Strip                      White

    ZB10

    Screwdriver

    SZS 1.0×4.0

    Rail Material

    aluminum

    Dimensions                             mm

                10.2/42.5/2

    Height (U35: 7.5/U35: 15G 32)              mm

    47/54.5/52

    Screw / Torque                           Nm

    M4 / 1.5-1.8

    Stripping Length                          mm

    10

    IEC Technical Data



    Max. Load Current / Cross Section         A / mm2

                 76 / 16

    Rated Surge Voltage / Contamination Class    KV / -

                  8 / 3

    Surge Voltage Category

                   Ⅲ



    Competitive Advantage:



    1. Good quality
    2. Competitive price
    3. Good after-sales service
    4. Full range products for selection
    5. OEM and ODM service
    6. Safety certifications

    16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length
