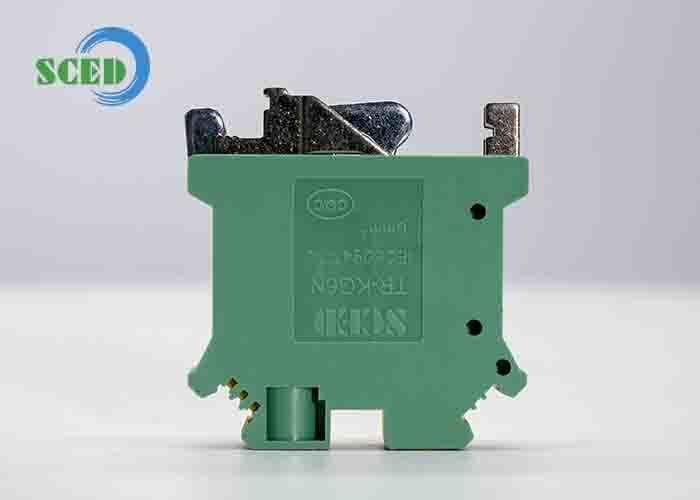

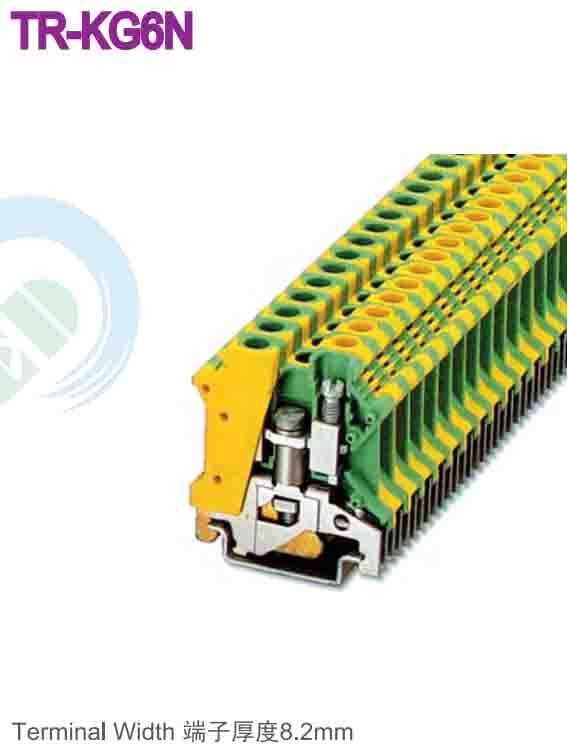

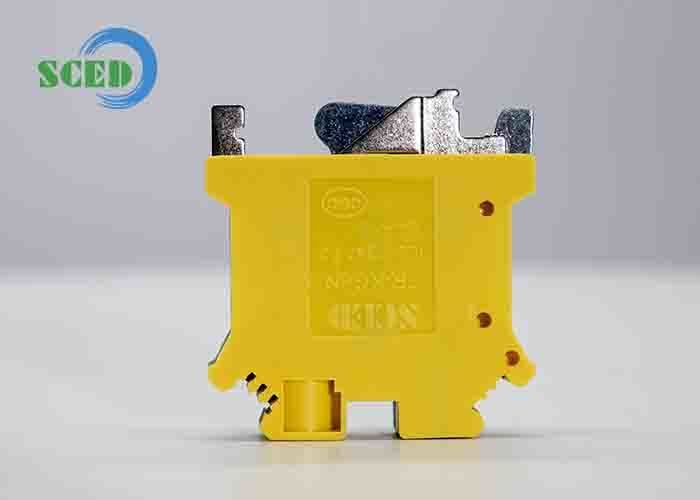

Aluminum Rail Material Din Rail Terminal Blocks Offering M4 Wire Fixing Screw for Electrical Signal and Power Transmission

Product Description:

The Din Rail Terminal Blocks are essential components widely used in electrical and industrial applications for secure and efficient wiring connections. Designed to meet rigorous standards, these terminal blocks offer a rated voltage of 600V, ensuring safe operation in various electrical circuits. With a rated current capacity of 30A, they are well-suited for medium-power applications, providing reliable conductivity and robust performance under demanding conditions.

One of the standout features of these Din Rail Terminal Blocks is their sturdy construction using high-quality plastic material. This choice of material offers excellent insulation properties and durability, making the terminal blocks resistant to wear, corrosion, and environmental factors. The plastic housing also contributes to the overall lightweight design, making installation and handling more convenient without compromising safety or strength.

The terminal blocks have a thickness of 9.5mm, which presents a compact profile suitable for saving space in electrical panels and control cabinets. Despite their slim design, these blocks maintain exceptional mechanical stability and electrical reliability. The compact thickness also facilitates a neat and organized wiring layout, which is critical in complex electrical assemblies.

Equipped with M4 wire fixing screws, the Din Rail Terminal Blocks ensure secure and stable connections. The M4 screw size is a standard choice for many industrial applications, providing a strong clamping force that minimizes the risk of wire loosening due to vibrations or thermal cycling. This feature helps maintain consistent electrical contact, reducing maintenance needs and enhancing overall system reliability.

These terminal blocks are compatible with enclosed conductor rails, which are commonly used for distributing electrical power safely and efficiently within control panels and machinery. The integration with enclosed conductor rail systems simplifies wiring tasks and enhances the safety of electrical installations by preventing accidental contact with live parts.

Moreover, the Din Rail Terminal Blocks serve as an excellent alternative to traditional ceramic terminal blocks. While ceramic terminal blocks are known for their heat resistance and durability, plastic terminal blocks provide similar benefits with added advantages such as lighter weight, easier installation, and better resistance to impact and mechanical stress. This makes them particularly suitable for applications where both electrical performance and ease of use are priorities.

Additionally, these terminal blocks function effectively as busbar terminal blocks, facilitating the distribution of power across multiple circuits. Their design allows for easy integration with busbars, which are metallic strips or bars that conduct electricity within switchboards, distribution boards, and other electrical apparatus. This capability enables efficient power management and distribution in complex electrical systems.

In summary, the Din Rail Terminal Blocks combine high voltage and current ratings with durable plastic material construction, compact thickness, and secure M4 wire fixing screws. Their compatibility with enclosed conductor rails, equivalence to ceramic terminal blocks, and functionality as busbar terminal blocks make them versatile components for a wide range of electrical and industrial applications. These features collectively ensure reliable, safe, and efficient electrical connections, making the Din Rail Terminal Blocks a preferred choice for professionals seeking quality and performance in terminal block solutions.

Features:

• Product Name: Din Rail Terminal Blocks
• Net Weight: 0.7kg
• Material: High-quality Plastic (PA)
• Rated Surge Voltage: No Abnormal Within 1 Minute
• Zack Strip Model: ZB6
• Compatible with AC DC Din Rail Power Supply systems
• Designed for easy integration with Busbar Terminal Blocks
• Suitable for installation on DIN Pipe Flange

Technical Parameters:

Applications:

The SCED Din Rail Terminal Blocks are designed to provide reliable and efficient electrical connections in a wide range of industrial and commercial applications. Manufactured in Jiangsu, Suzhou, these terminal blocks meet stringent quality standards, certified by CE and ISO9001, ensuring safety and durability under demanding conditions. With a rated voltage of 600V and a rated current of 30A, the SCED terminal blocks are ideal for AC DC Din Rail Power Supply systems, offering stable performance for both alternating and direct current circuits.

These terminal blocks are compatible with Din Rail 35mm mounting, making installation straightforward and secure. The use of high-quality PA plastic ensures excellent insulation and resistance to heat and wear. Wire fixing is facilitated by robust M4 screws, providing a firm and reliable connection to prevent loosening due to vibration or mechanical stress. Available in a wide range of poles from 1P up to any required number, these terminal blocks are versatile enough to meet the complex wiring needs of modern electrical panels.

SCED terminal blocks are commonly used in various application scenarios, including industrial automation, control cabinets, power distribution units, and machinery wiring systems. They are perfect for environments where efficient wiring and safety are paramount, such as manufacturing plants, renewable energy systems, and building automation networks. The terminal blocks are often paired with Din Rail Mounting Clips, which help secure the components firmly onto the rail, enhancing system stability and ease of maintenance.

With a supply capacity of 100,000 pieces per day, SCED can fulfill high-volume orders efficiently, with a minimum order quantity of 100 pieces. Packaging is done carefully in carton boxes to ensure safe delivery. Customers can request the latest price and benefit from flexible payment terms, including T/T, AliPay, and PayPal. The typical delivery time is around 50 days, balancing production and shipping schedules for timely project execution.

In summary, SCED Din Rail Terminal Blocks provide a dependable solution for electrical connection needs in AC DC Din Rail Power Supply setups. Their compatibility with Din Rail 35mm systems, high-quality construction, and versatile pole options make them suitable for a broad range of industrial and commercial applications, ensuring safety, reliability, and ease of installation.

Customization:

SCED offers customized Din Rail Terminal Blocks designed to meet your specific requirements. Manufactured in Jiangsu, Suzhou, our products come with CE and ISO9001 certifications, ensuring high quality and reliability. We provide a minimum order quantity of 100 pieces with competitive pricing—please contact us to get the latest price.

Our Din Rail Terminal Blocks feature durable rail materials including aluminum and steel, combined with high-quality plastic for the terminal body. Available with female gender connections and poles ranging from 1P to your specified number, these blocks support a rated current of 30A, making them ideal for various electrical applications.

SCED’s supply ability is robust, with up to 100,000 pieces produced per day, ensuring timely fulfillment of bulk orders. Packaging is done carefully in carton boxes to guarantee safe delivery. Typical delivery time is approximately 50 days, with flexible payment terms including T/T, AliPay, and PayPal.

Our product line is perfectly suited for use with Din Rail Energy Meters, Barrier Terminal Blocks, and Din Rail KWH Meters, providing reliable connections and ease of installation in industrial and commercial electrical setups.

Support and Services:

Our Din Rail Terminal Blocks come with comprehensive technical support and services to ensure optimal performance and ease of installation. We provide detailed product documentation, including datasheets, wiring diagrams, and installation guides to assist you in selecting and using the right terminal blocks for your application.

Technical support is available to help with product selection, troubleshooting, and customization requests. Our experienced engineers are ready to assist with any technical inquiries or challenges you may encounter.

We also offer training sessions and webinars to help you understand the features and benefits of our Din Rail Terminal Blocks, as well as best practices for installation and maintenance.

For ongoing service, we provide warranty coverage and replacement options to guarantee product reliability and customer satisfaction.

Our commitment is to deliver high-quality terminal solutions backed by responsive and knowledgeable support, ensuring your projects run smoothly from start to finish.

Packing and Shipping:

Each Din Rail Terminal Block is carefully packaged in a sturdy box to ensure protection during transit. The packaging includes anti-static materials and padding to prevent damage from shocks and vibrations.

For bulk orders, terminal blocks are securely arranged in larger cartons with clear labeling for easy identification and inventory management.

Shipping is handled through reliable carriers to guarantee timely delivery. Tracking information is provided for all shipments, and special handling options are available upon request to meet specific customer requirements.

We prioritize safe and efficient packaging and shipping practices to ensure that your Din Rail Terminal Blocks arrive in perfect condition and ready for immediate use.

FAQ:

Q1: What is the brand name of the Din Rail Terminal Blocks?

A1: The brand name is SCED.

Q2: Where are the Din Rail Terminal Blocks manufactured?

A2: They are manufactured in Jiangsu, Suzhou.

Q3: What certifications do these terminal blocks have?

A3: The product is certified with CE and ISO9001.

Q4: What is the minimum order quantity for the Din Rail Terminal Blocks?

A4: The minimum order quantity is 100 pieces.

Q5: What are the payment terms available?

A5: We accept T/T, AliPay, and PayPal as payment methods.

Q6: What is the delivery time for orders?

A6: The delivery time is approximately 50 days.

Q7: How are the Din Rail Terminal Blocks packaged?

A7: They are packaged in carton boxes for safe transport.

Q8: What is the supply capacity of the Din Rail Terminal Blocks?

A8: The supply ability is up to 100,000 pieces per day.

Q9: How can I get the latest price for the Din Rail Terminal Blocks?

A9: Please contact the supplier directly to get the latest price information.
