| Place of Origin: | Guangdong,China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL, CQC and VDE etc. |
| Model Number: | TR-16N-02 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.45-0.92 Per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Terminal Width: | 12.1mm | Current: | 85A |
|---|---|---|---|
| Voltage: | 600V | Wire Range: | 4-20 AWG |
| Plastic: | PA66 | Inflammability Class: | UL94-V0 |
| Screw: | M5 | Torque: | 22-25 Lbf.in |
| Stripping Length: | 16mm | Wire Inlet: | Right Angle |
| High Light: | wiring terminal block,feed through terminal blocks |
||

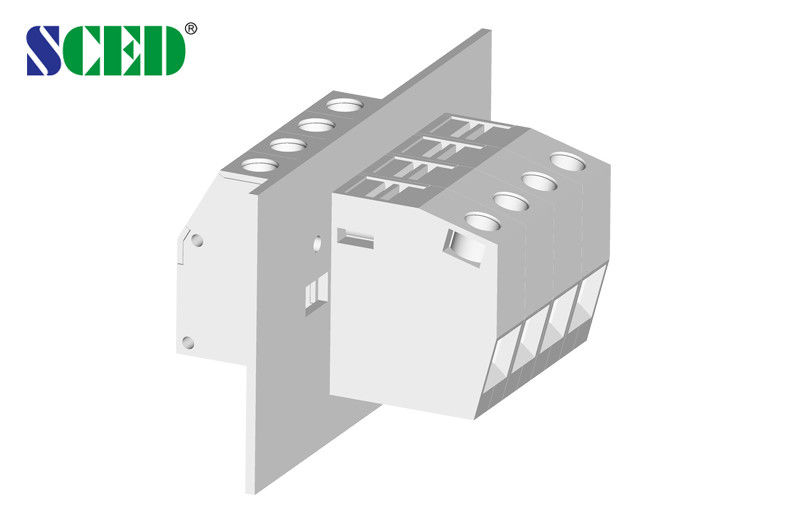

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A
Detailed product Description:
Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available.
Applications:
1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting
2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 85 |
|
600 / 5 |
|
Wire Range AWG |
4-20 |
|
4-20 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 101 |
800 / 101 |
1000 / 101 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
16 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
16 |
||
|
Screw / Torque / lbf.in |
M5 / 22-25 |
||
