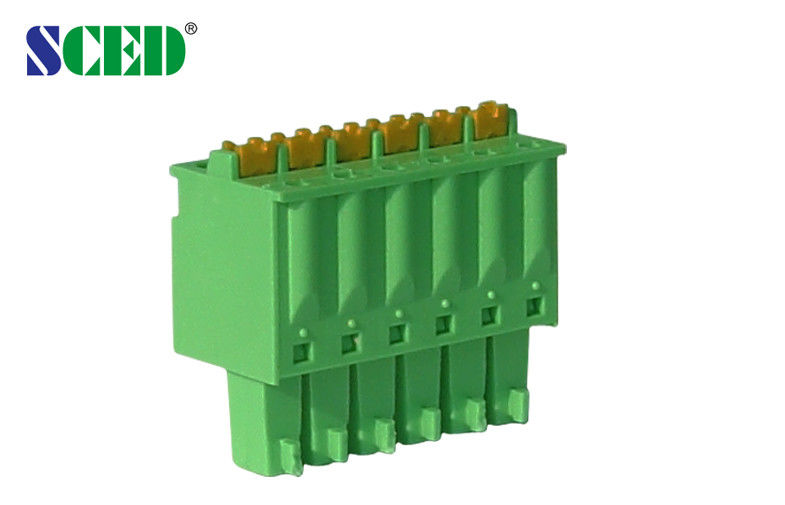

3.81mm 300v 8A Pluggable Terminal Block Plug Female Sockets 2P - 22P Brass
-
Highlight
electrical terminal blocks
,plug in terminal block
-
TypeFemale Part
-
ColorGreen
-
Pitch3.81mm
-
Current8A
-
Voltage300V
-
PlasticPA66
-
Contact ResistanceLess Than 8mΩ
-
Rated Surge VoltageNo Abnormal Within 1 Minute
-
Inflammability ClassUL94, V-0
-
Insulation ResistanceAbove DC500V, 500MΩ
-
Place of OriginGuangdong China
-
Brand NameSCED
-
CertificationCE,UL,CUL,CQC,VDE etc.
-
Model NumberTP381P-03
-
Minimum Order Quantity500 Piece/Pieces
-
PriceUSD 0.074-0.148 Per pole
-
Packaging DetailsStandard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
-
Delivery Time5-20 days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
3.81mm 300v 8A Pluggable Terminal Block Plug Female Sockets 2P - 22P Brass
3.81mm 300v 8A Pluggable Terminal Block Plug Female Sockets 2P - 22P Brass
Detailed product Description:
3.81mm 300v 8A Pluggable Terminal Block Plug Female Sockets 2P - 22P Brass
■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05
Standard color: Green. Other colors also available, for example: Grey, Black, Yellow, Blue and White and so on.
Applications:
Normally our products will be used in below fileds:
1.PCB, Frequency Converters, Server Site, Switch
2.Power Supply, Electric Lighting, Industry Control
3.Automation, Rail Transportation, Communication, Electric Power
4.Security, Medicine Equipment, Military, Elevator
5. And other industries etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 8 |
|
|
|
Wire Range AWG |
16-30 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring Clamp |
Stainless Steel |
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
Competitive Advantage:
We have 12 years of experience in designing, manufacturing and marketing termianl blocks. Stable good quality with competive price can be provided. We have 10 main series and more than 1000 models for selection.
Our services cover all industries and reach all parts of the world.
