| Place of Origin: | Guangdong China |
| Brand Name: | SCED |
| Certification: | UL,CUL,CE,VDE,CQC etc. |
| Model Number: | TJ508-08 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.034-0.068 Per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Pitch: | 5.08mm | Poles: | Any Poles Available |
|---|---|---|---|
| Terminal: | Brass | Type: | Screw |
| Current: | 10A | Voltage: | 300V |
| Plastic: | PA66 | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Contact Resistance: | Less Than 8mΩ | Insulation Resistance: | Above DC500V, 500MΩ |
| High Light: | screw type terminal block,screw connection terminal block |
||

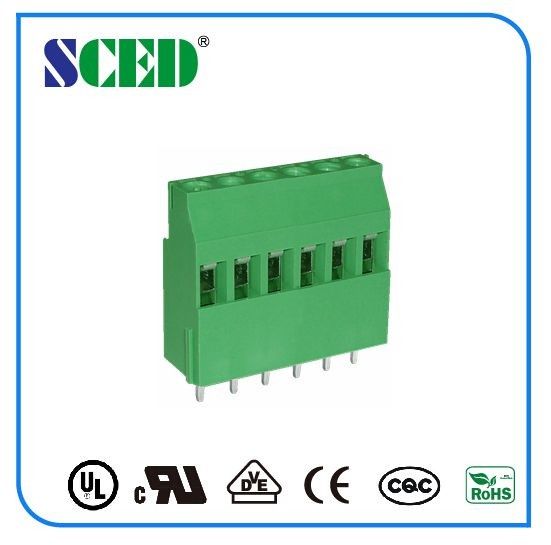

Euro Type PCB Screw Terminal Block 300V 10A PA66 Brass Terminal
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 10 |
|
300 / 10 |
|
Wire Range AWG |
12-26 |
|
12-26 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 10 |
400 / 10 |
630 / 10 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.6 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Competitive Advantage:
