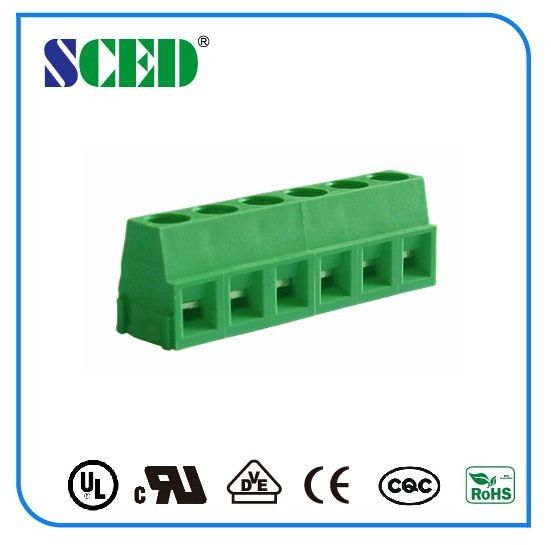

Pitch 5.08mm Screw Type Terminal Block Green Plastic 300V 10A 5.08mm Pitch

Pitch 5.08mm Screw Type Terminal Block Green Plastic 300V 10A 5.08mm Pitch

Products - PCB Screw Terminal Block
  • Highlight

    screw type terminal block

    ,

    screw connection terminal block

  • Color
    Green
  • Pitch
    5.08mm
  • Voltage
    300V
  • Current
    10A
  • Poles
    Any Poles Available
  • Plastic
    PA66
  • Terminal
    Brass
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TJ508-07V
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.034-0.068 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Pitch 5.08mm Screw Type Terminal Block Green Plastic 300V 10A 5.08mm Pitch

  • Pitch 5.08mm Screw Type Terminal Block Green Plastic 300V 10A 5.08mm Pitch
  • Pitch 5.08mm Screw Type Terminal Block Green Plastic 300V 10A 5.08mm Pitch
Get Price Contact Now

Pitch 5.08mm PCB Screw Terminal Block Green Plastic PA66 Brass



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.3

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 5.08mm Screw Type Terminal Block Green Plastic 300V 10A 5.08mm Pitch 0Pitch 5.08mm Screw Type Terminal Block Green Plastic 300V 10A 5.08mm Pitch 1
