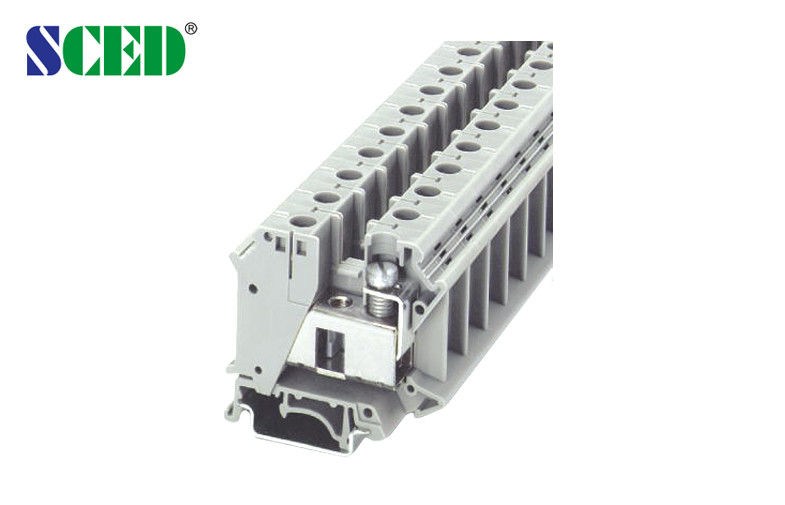

Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2

Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2

    • Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2
  • Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: CE,UL,CUL,VDE,CQC etc.
    Model Number: TR-35N

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.8-1.2 Per Pcs
    Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Terminal Width: 15.2mm Color: Grey
    Type: Din Rail Current: 150A
    Volt: 800V Rated Surge Voltage: No Abnormal Within 1 Minute
    Insulation Resistance: Above DC500V, 500MΩ Inflammability Class: UL94, V-0
    Contact Resistance: Less Than 8mΩ Height: 51/58.5/59mm
    High Light:

    rail mounted terminal blocks

    ,

    din rail terminals blocks

    Terminal Width 15.2mm Din Rail Terminal Blocks Grey 800V 150A 50mm2



    Detailed product Description:



    Terminal width: 15.2mm, 600V 115A, AWG:18-2, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available.



    Applications:

    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



    Parameter and Drawing Specifications:

    Description                    Color

    Type

    Terminal                       Grey

    TR-35N

    Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2 0End Cover                      Grey





    Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2 1Fixed Bridge



    FBI 2-15        Imax: 135A

    Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2 2Insertion Bridge



    FBI 3-15        Imax:120A

    Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2 3Separating Plate



    TS-K

    Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2 4Partition Plate



    TP-TR-35(7.5mm thick)

    Zack Strip                      White

    ZB10

    Screwdriver

    SZS 1.0×6.5

    Rail Material

    aluminum

    Dimensions                             mm

                15.2/55/-

    Height (U35: 7.5/U35: 15G 32)              mm

    58.5/51/59

    Screw / Torque                           Nm

    M6 / 3.2-3.7

    Stripping Length                          mm

    16

    IEC Technical Data



    Max. Load Current / Cross Section         A / mm2

                 125 / 35

    Rated Surge Voltage / Contamination Class    KV / -

                  8 / 3

    Surge Voltage Category

                   Ⅲ



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Terminal Width 15.2mm Din Rail Terminals Blocks Grey 800V 150A 50mm2 5
