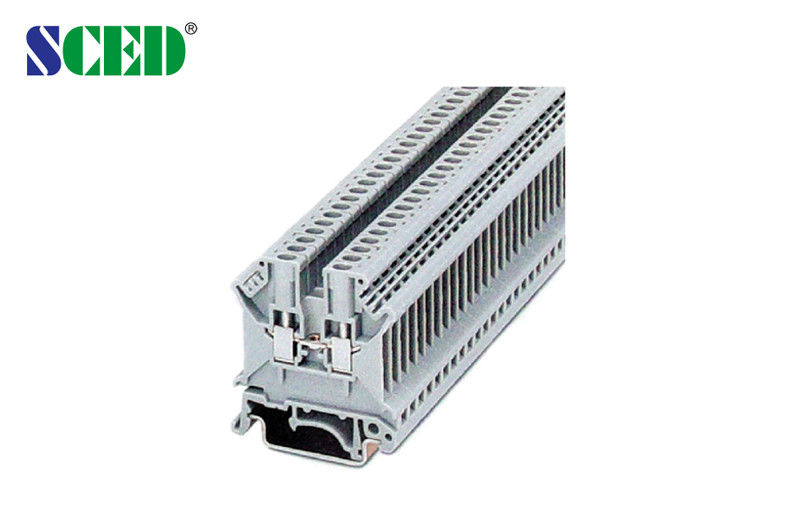

Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A

Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A

  • Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A
Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TR-3N
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: USD 0.135-0.216 per PCS
Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Volt: 600 V Current: 20A
Inflammability Class: UL94, V-0 Contact Resistance: Less Than 8mΩ
Conductor Size: 11 - 20 AWG Rated Surge Voltage: No Abnormal Within 1 Minute
Insulation Resistance: Above DC500V, 500MΩ
High Light:

rail mounted terminal blocks

,

din rail mount terminal blocks

Single Deck Din Rail Terminal Blocks Terminal width 5.2mm 600V 20A



Detailed product Description:



Terminal width: 5.2mm, 600V 20A, AWG:28-12, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                       Grey

TR-3N

Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A 0End Cover                      Grey



D-TR-3/16

Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A 1Fixed Bridge



FBI 10-5       Imax: 30A

Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A 2Insertion Bridge



EBL 10-5       Imax: 24A

Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A 3Separating Plate



TS-K

Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A 4Partition Plate



ATP-TR

Zack Strip                      White

ZB5

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

5.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

32 / 4

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Single Deck Din Rail Terminal Blocks Terminal Width 5.2mm 600V 20A 5
