Panel Mount Wiring Terminal Block Feed Through Connector 600V 50A

Panel Mount Wiring Terminal Block Feed Through Connector 600V 50A

Products - Through Panel Terminal Blocks
  • Highlight

    wiring terminal block

    ,

    feed through terminal blocks

  • Terminal Width
    10.00mm
  • Rated Voltage/Currennt
    600V/50A
  • Housing
    PA66/ UL 94V-0
  • Color
    Grey
  • Screw
    M4/ Steel/ Zinc Plated
  • Clamp Cage
    Brass / Nickel Plated
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-6N-02
  • Minimum Order Quantity
    200PCS
  • Packaging Details
    Standard Export Carton

Panel Mount Wiring Terminal Block Feed Through Connector 600V 50A

Get Price Contact Now

Panel Mount Through Panel Terminal Blocks Feed Through Connector China Suppliers





1. Screw: M4/ Steel/ Zinc Plated

2. Used for POWER supply, power filter, and Industrial control

3. Easy assemble to the panel with thickness within 10mm.

4. Operating temperature: -40℃~+150℃



Photo Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 50



600 / 5

Wire Range                       AWG

8-26



8-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 57

830 / 57

1000 / 57

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9

Screw / Torque                    / lbf.in

M4 / 10.6-13


Applications:

1. PCB, Frequency Converters,

2. Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Electric Power,

3. Rail Transportation, Communication, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

PHOTO AND DRAWING

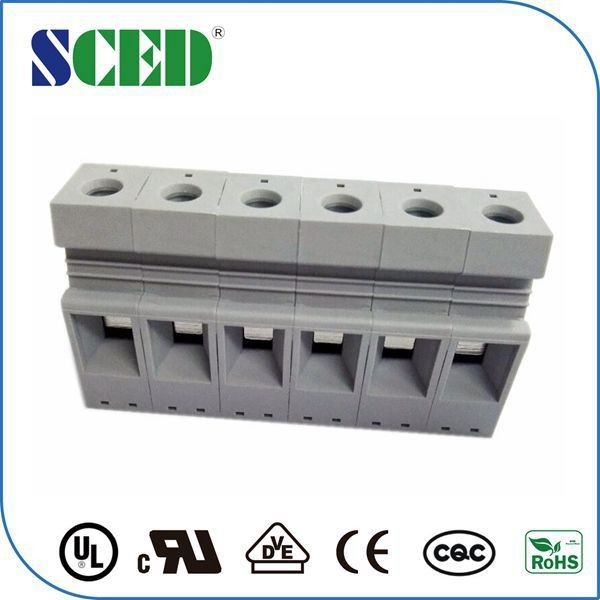

Panel Mount Wiring Terminal Block Feed Through Connector 600V 50A 0

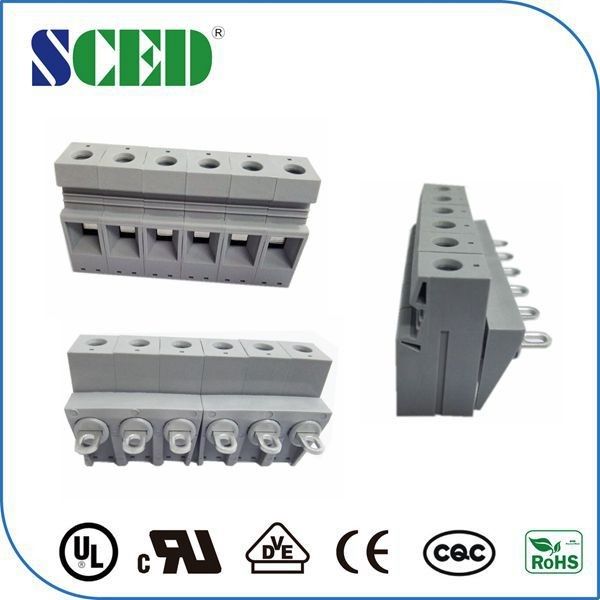

Panel Mount Wiring Terminal Block Feed Through Connector 600V 50A 1

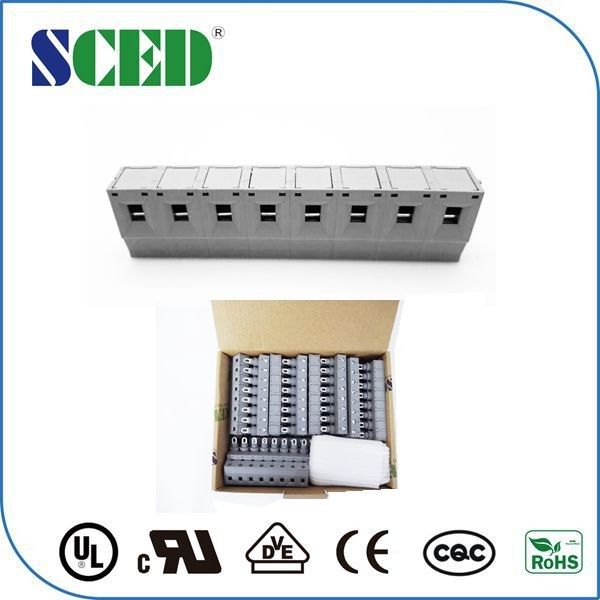

Panel Mount Wiring Terminal Block Feed Through Connector 600V 50A 2

SCED Certifications Photo:



Panel Mount Wiring Terminal Block Feed Through Connector 600V 50A 3
