Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component

Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component

Products - Through Panel Terminal Blocks
  • Highlight

    wiring terminal block

    ,

    feed through terminal blocks

  • Type
    Wall Through Panel
  • Pitch
    12.1mm
  • Screw
    Steel
  • Torque
    22-25 Ibf.in
  • Conduction Board
    Copper
  • Insulation Material
    PA66
  • Wire Range
    4-20 AWG
  • Place of Origin
    SHENZHEN CHINA
  • Brand Name
    SCED
  • Certification
    CE ROHS
  • Model Number
    TR-16N-02
  • Minimum Order Quantity
    200
  • Packaging Details
    Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    7-20 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1KK poles each monthly

Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component

  • Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component
  • Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component
  • Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component
  • Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component
Get Price Contact Now

Pitch 12.1mm Wall Through Panel Terminal Blocks PA66 Electronic Component





1. Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,



2. Industry Control, Automation,



3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,



Elevator, etc..



2. Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 85



600 / 5

Wire Range                       AWG

4-20



4-20

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

800 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

16

Screw / Torque                    / lbf.in

M5 / 22-25



3. Feature Advantage:



1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.


2. It can be stackable to be different poles, easy to be mounted on PCB or control board,


3. It has very good mechanical properties and electrical properties,





4. Competitive Advantage:



1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;



2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;



3. Discount offered is based on qty.

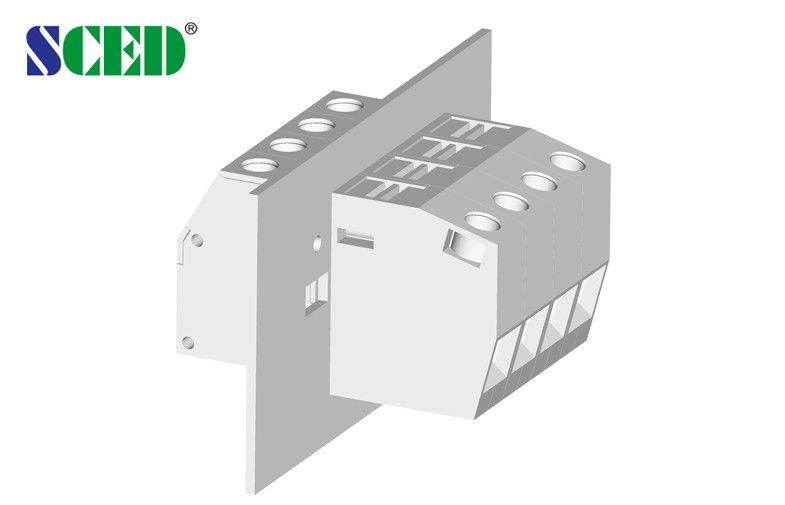

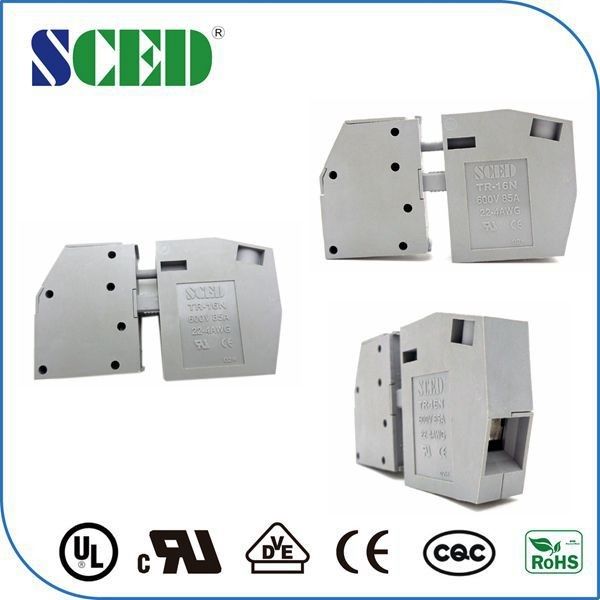

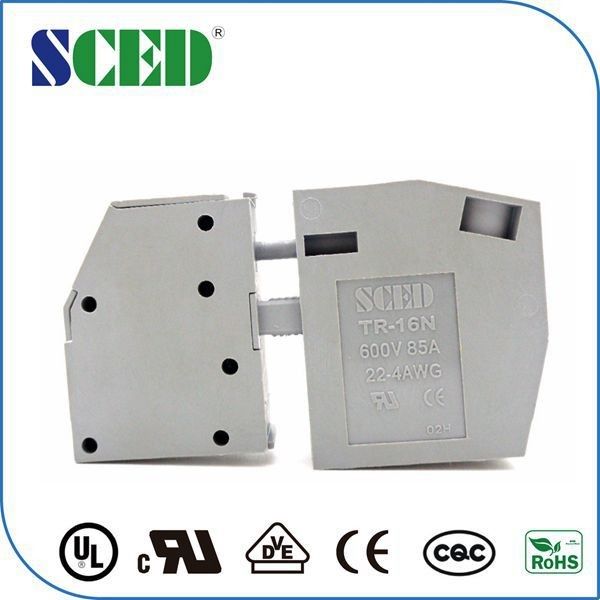

5. Photo and Drawing



Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component 0Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component 1





Pitch 12.1mm Wall Electric Terminal Block Small Electronic Component 2
