| Place of Origin: | SHENZHEN CHINA |
| Brand Name: | SCED |
| Certification: | CE ROHS |
| Model Number: | TD180-01-C |
| Minimum Order Quantity: | 200 |
|---|---|
| Packaging Details: | Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 7-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Feed Through | Pitch: | 21.00mm |
|---|---|---|---|
| Screw: | Steel | Torque: | 20-22 Ibf.in |
| Conduction Board: | Brass | Insulation Material: | PBT |
| Stripping Length: | 14-18 | ||
| High Light: | pcb terminal block connectors,pcb mount terminal block |
||

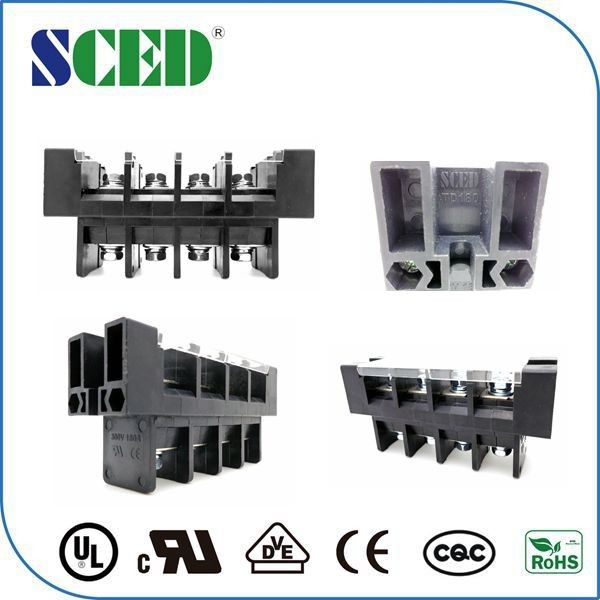

Pitch 21mm Feed Through Terminal Block Electric Terminal Connector
1. Quick Detail:
The current : 180A
Voltage: 300V
Insulation Material: PBT
Inflammability Classl: UL94, V-0
2. Description:
1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a,
2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.
3. Current: 180A.
3. Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,
2. Industry Control, Automation,
3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
4. Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 180 |
300 / 180 |
300 / 10 |
|
Wire Range AWG |
20-1/0 |
20-1/0 |
4-20 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 180 |
800 / 180 |
1000 / 180 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
8 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT/ UL94, V-0 |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
14-18 |
||
|
Screw / Torque / lbf.in |
M6 / 20-22 |
||
5. Feature Advantage:
1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.
2. It can be stackable to be different poles, easy to be mounted on PCB or control board,
3. It has very good mechanical properties and electrical properties,
6. Competitive Advantage:
1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;
3. Discount offered is based on qty.
Contact Person: Martin Liang
Tel: +8613902441660
Fax: +86-755-28769522
