PBT Electrical Terminal Block , Steel M6 Barrier Strip Connector

PBT Electrical Terminal Block , Steel M6 Barrier Strip Connector

  • PBT Electrical Terminal Block  , Steel M6 Barrier Strip Connector
  • PBT Electrical Terminal Block  , Steel M6 Barrier Strip Connector
PBT Electrical Terminal Block  , Steel M6 Barrier Strip Connector
Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: SCED
Certification: CE ROHS
Model Number: TD100-01-C
Payment & Shipping Terms:
Minimum Order Quantity: 200
Packaging Details: Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 7-20 working days
Payment Terms: L/C, T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Feed Through Pitch: 21.00mm
Screw: Steel M6 Torque: 20-22 Ibf.in
Conduction Board: Brass Insulation Material: PBT
Wire Range: 4-22 AWG Rated Connecting Capacity: 25 Mm2
High Light:

pcb terminal block connectors

,

pcb mount terminal block

PBT Electrical Terminal Block  , Steel M6 Barrier Strip Connector



1. Quick Detail:



The current : C

Voltage: 600V

Insulation Material: PBT

 Inflammability Classl: UL94, V-0



2. Description:


1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a,



2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.



3. The Current: 101A.



3. Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,



2. Industry Control, Automation,



3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,



Elevator, etc..



4. Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 101

600 / 101

600 / 5

Wire Range                       AWG

2-20

2-20

2-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

1000 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11-12

Screw / Torque                    / lbf.in

M6 / 20-22




5. Feature Advantage:



1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.


2. It can be stackable to be different poles, easy to be mounted on PCB or control board,


3. It has very good mechanical properties and electrical properties,





6. Competitive Advantage:



1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;



2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;



3. Discount offered is based on qty.

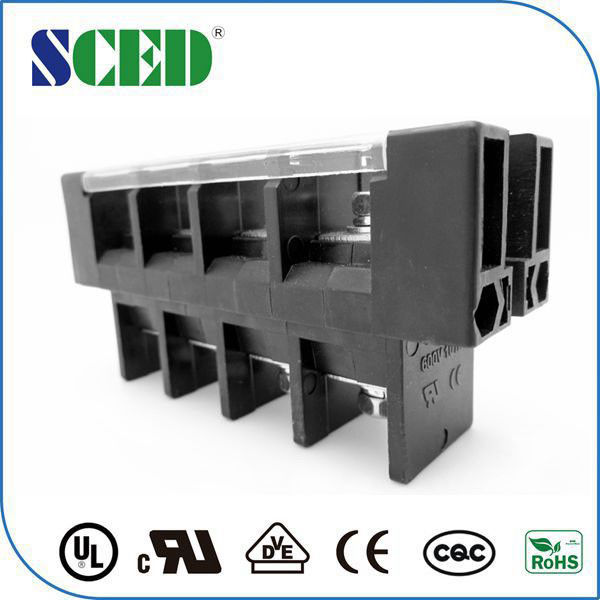

PBT Electrical Terminal Block  , Steel M6 Barrier Strip Connector 0

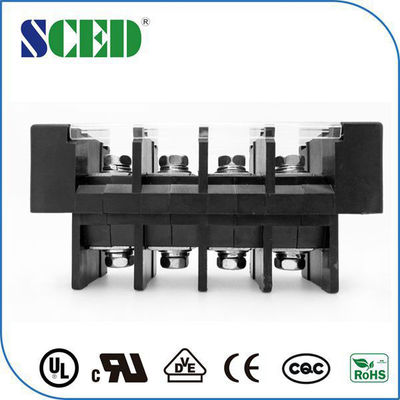

PBT Electrical Terminal Block  , Steel M6 Barrier Strip Connector 1
