10 Position Electronic Connector for Industrial Applications

Product Description:

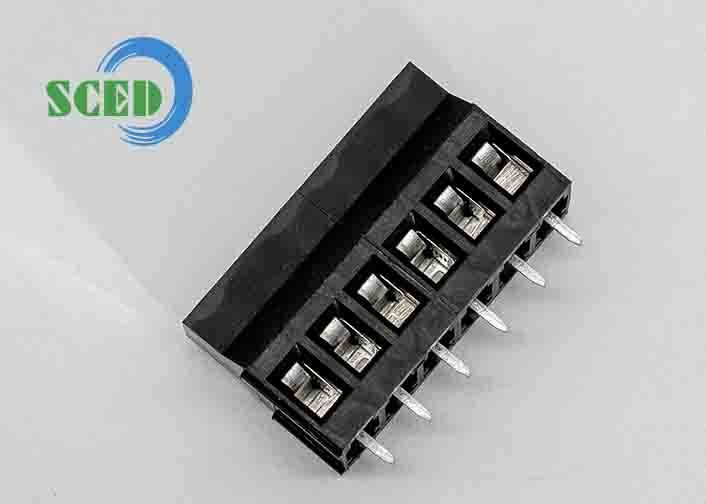

The PCB Terminal Block is a versatile electronic connector designed for reliable wire connections in various electronic applications. With a wire gauge compatibility ranging from 22 to 14AWG, this terminal block offers a wide range of compatibility for different wire sizes, making it a versatile choice for electronic projects.

Whether you require Through Hole or Surface Mount mounting type, the PCB Terminal Block provides flexibility in installation options to suit your specific needs. The Through Hole mounting type offers secure and stable connection points on the PCB, while the Surface Mount option allows for space-saving and efficient PCB layout.

Operating within a wide temperature range of -40℃ to +105℃, the PCB Terminal Block ensures reliable performance even in extreme environmental conditions. This temperature resilience makes it suitable for a variety of applications where temperature variations are common, providing consistent connectivity and performance.

Branded as SCED, the PCB Terminal Block is a high-quality product that guarantees durability and efficiency in wire connections. The SCED brand is known for its reliable electronic components, and the PCB Terminal Block is no exception, offering superior quality and performance for your electronic projects.

Each PCB Terminal Block features precise contacts that ensure secure wire connections without the risk of loosening or disconnection. The contacts provide a stable and reliable electrical connection, reducing the chances of signal interference or power loss in your electronic circuit.

Whether you are working on a small-scale DIY project or a large-scale industrial application, the PCB Terminal Block is the ideal choice for your wire connection needs. Its compatibility with a wide range of wire gauges, mounting options, and temperature resilience make it a versatile and dependable solution for various electronic applications.

Features:

• Product Name: PCB Terminal Block
• Color: White/Black/Grey
• Number of Positions: 2/3/4/5/6/8/10/12/14
• Material: Plastic/Metal
• Withstand Voltage: AC2000V/min
• Voltage Rating: 250V/300V/400V/500V

Technical Parameters:

Applications:

SCED's PCB Terminal Block is a versatile electronic connector suitable for a wide range of applications due to its high quality and reliability. Made in China, this product is certified with CE and ISO9001, ensuring its adherence to international standards.

The terminal block is ideal for use in various scenarios, including industrial control systems, power supplies, telecommunications equipment, and more. Its durable construction using plastic or metal materials makes it suitable for both indoor and outdoor use.

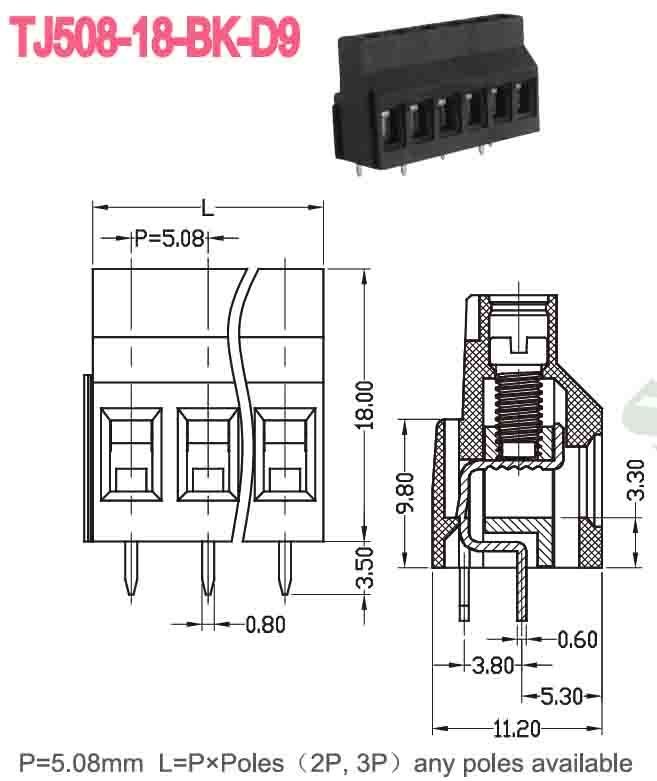

With pitch options of 3.5mm, 5.0mm, and 5.08mm, the PCB Terminal Block can accommodate different spacing requirements in electronic circuits. It is available in various configurations, ranging from 2 to 14 positions and 1 to 6 rows, providing flexibility in design and installation.

Whether for through-hole or surface mount applications, this terminal block offers secure and stable connections, making it an essential component in PCB assembly. The minimum order quantity of 500 units allows for bulk purchases, while the product's competitive pricing ensures cost-effectiveness.

When ordering, customers can expect their PCB Terminal Blocks to be delivered in sturdy carton boxes within 50 days. Payment can be made through T/T, AliPay, or PayPal, offering convenience and security in transactions. With a supply ability of 100,000 pieces per day, SCED ensures timely availability of the product to meet varying demands.

In conclusion, SCED's PCB Terminal Block is a reliable and efficient solution for electronic connectivity needs across diverse industries. Its quality, certification, and versatility make it a preferred choice for engineers and manufacturers seeking high-performance terminal blocks for their projects.

Customization:

For the PCB Terminal Block product, SCED offers Product Customization Services to meet your specific requirements:

Brand Name: SCED

Place of Origin: China

Certification: CE, ISO9001

Minimum Order Quantity: 500

Price: Get latest price

Packaging Details: Carton box

Delivery Time: 50 day(s)

Payment Terms: T/T, AliPay, PayPal

Supply Ability: 100000pcs/day

Current Rating: 2A/5A/10A/15A/20A/25A/30A

Termination Method: Screw/Solder

Brand: SCED

Number of Rows: 1/2/3/4/5/6

Insulation Resistance: 1000MΩ/min

Customize your electronic connector, contact, and terminal block with SCED's tailored services.

Support and Services:

Our Product Technical Support and Services for the PCB Terminal Block include:

- Comprehensive technical documentation and datasheets for easy reference.

- Dedicated technical support team available to assist with any product-related inquiries or issues.

- On-site product training and consultation services to optimize usage and performance.

- Customized solutions and product modifications to meet specific project requirements.

Packing and Shipping:

Product Name: PCB Terminal Block

Description: Our PCB Terminal Block is a high-quality connector designed for easy and secure wire connections in printed circuit boards.

Features:

• Compact design
• Easy to install
• Durable and reliable

Package Includes:

• 1 x PCB Terminal Block
• Mounting screws

Shipping Information:

• Shipping Method: Standard Shipping
• Shipping Time: 3-5 business days
• Shipping Cost: $5.99

FAQ:

Q: What is the brand name of this PCB Terminal Block product?

A: The brand name of this product is SCED.

Q: Where is this PCB Terminal Block product manufactured?

A: This product is manufactured in China.

Q: What certifications does this PCB Terminal Block product have?

A: This product is certified with CE and ISO9001.

Q: What is the minimum order quantity for this PCB Terminal Block product?

A: The minimum order quantity for this product is 500 units.

Q: What are the available payment terms for purchasing this PCB Terminal Block product?

A: The available payment terms for this product are T/T, AliPay, and PayPal.
