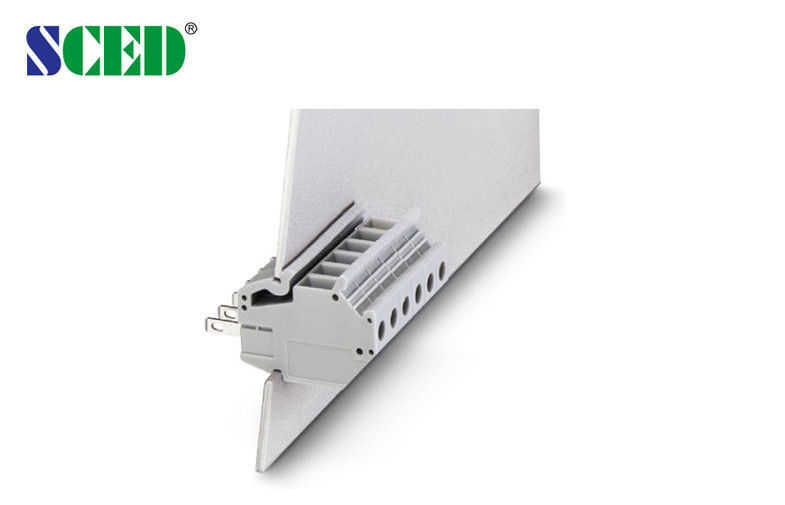

Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through

Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through

  • Highlight

    panel mount terminal blocks

    ,

    feed through terminal blocks

  • Terminal Width
    6.20mm
  • Rated Voltage/Currennt
    300V/15A
  • Housing
    PA66/ UL 94V-0
  • Color
    Grey
  • Color
    Grey
  • Wire Range
    12-28
  • Wire Range
    12-28
  • Stripping Length
    9mm
  • Screw
    M3/ Steel/ Zinc Plated
  • Clamp Cage
    Brass / Nickel Plated
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-4N-01
  • Minimum Order Quantity
    200
  • Packaging Details
    Standard Export Carton

Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through

Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through





Photo Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

12-28



12-28

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 17.5

400 / 17.5

630 / 17.5

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9

Screw / Torque                    / lbf.in

M3 / 5.3-7





Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through 0



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..







Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
