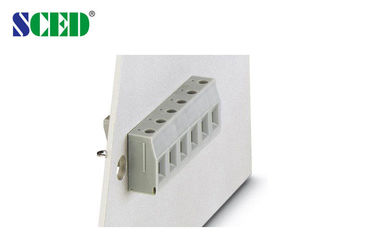

Plastic Through Panel Din Rail Terminal Blocks With Electrical Wire Terminals

Plastic Through Panel Din Rail Terminal Blocks With Electrical Wire Terminals

    • Plastic Through Panel Din Rail Terminal Blocks With Electrical Wire Terminals
  • Plastic Through Panel Din Rail Terminal Blocks With Electrical Wire Terminals

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-4N-03

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Packaging Details: Standard Export Carton
    Contact Now
    Detailed Product Description
    Terminal Width: 10.00mm Rated Voltage/Currennt: 300V/30A
    Housing: PA66/ UL 94V-0 Color: Grey
    Wire Range: 10-30 Stripping Length: 8mm
    High Light:

    panel mount terminal blocks

    ,

    feed through terminal blocks

    Plastic Through Panel Din Rail Terminal Blocks with Electrical Wire Terminals







    Photo Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 30



    300 / 10

    Wire Range                       AWG

    10-30



    10-30

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    500 / 32

    630 / 32

    1000 / 32

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    4

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    8

    Screw / Torque                    / lbf.in

    M3 / 5.3-7





    Plastic Through Panel Din Rail Terminal Blocks With Electrical Wire Terminals 0

    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..







    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
