Ground Type 6mm2 Din Rail Terminal Blocks Industrial Electrical Connectors

Ground Type 6mm2 Din Rail Terminal Blocks Industrial Electrical Connectors

  • Highlight

    rail mounted terminal blocks

    ,

    din rail mount terminal blocks

  • Terminal Width
    6.20mm
  • Center Fixing Screw/Torque
    M3/0.6-0.8
  • Thickness/Width
    6.2/63.5
  • Color
    Yellow And Green
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation Etc
  • Stripping Length
    8mm
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-KG5N
  • Minimum Order Quantity
    200
  • Packaging Details
    Standard Export Carton

Ground Type 6mm2 Din Rail Terminal Blocks Industrial Electrical Connectors

Ground Type 6mm2 Din Rail Terminal Blocks Industrial Electrical Connectors



Details:



Ground type terminal block

Color: green & yellow



Photo Parameter and Drawing Specifications:





Description                    Color

Type

Terminal                    Green & Yellow

TR-KG5N

Zack Strip                      White

ZB6         SZS0.6x3.5

Rail Material

Aluminum / Steel

Dimensions

6.2/42.5

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Wire Fixing Screw / Torque                   Nm

M3 / 0.6-0.8

Center Fixing Screw / Torque                Nm

M3 / 0.6-0.8

Stripping Length                                    mm

8

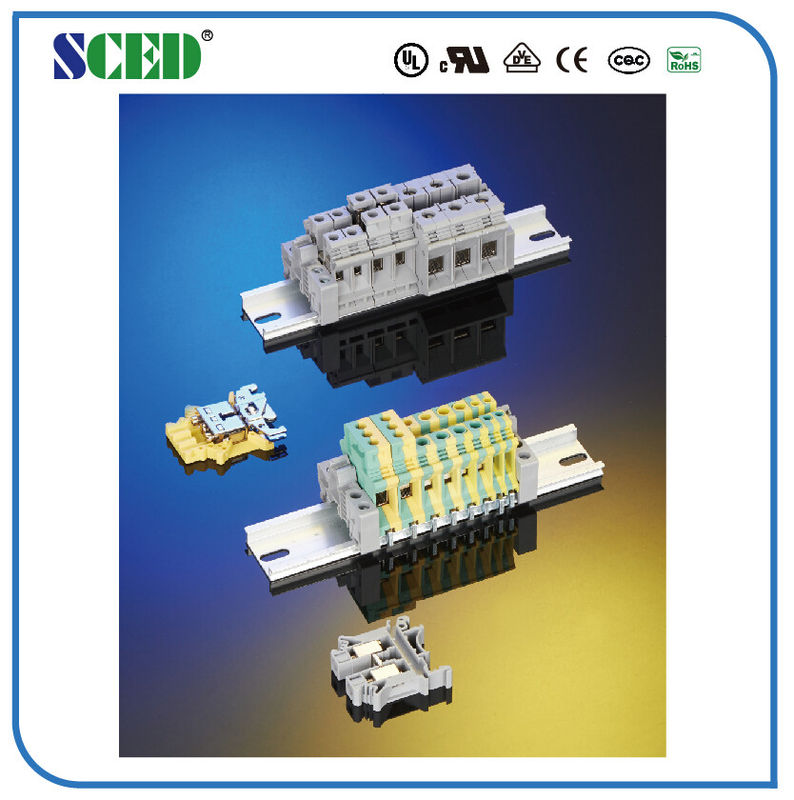

Ground Type 6mm2 Din Rail Terminal Blocks Industrial Electrical Connectors 0



Applications:



PCB, Frequency Converters, Server Site, Switch,

Power Supply, Electric Lighting, Industry Control, Automation,

Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..







Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

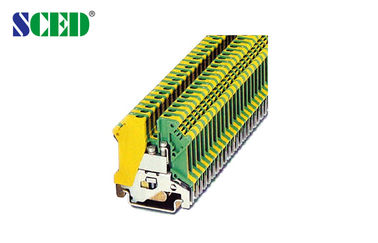

Ground Type 6mm2 Din Rail Terminal Blocks Industrial Electrical Connectors 1
