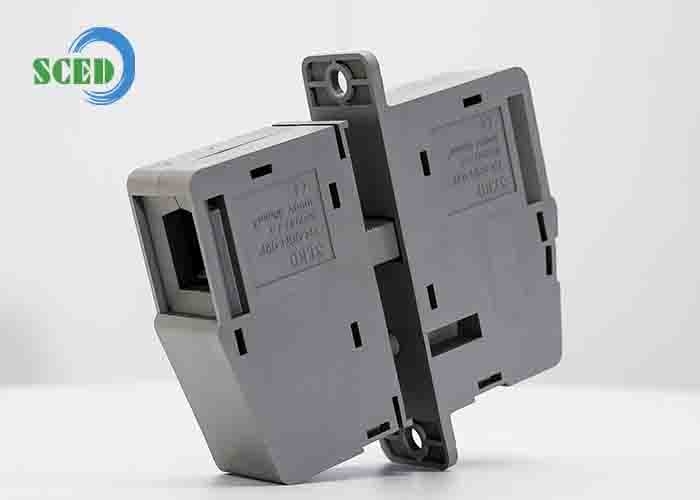

600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle
-
Highlight
230A Through Panel Terminal Blocks
,600V Through Panel Terminal Blocks
,Right Angle Through Panel Terminal Blocks
-
Pitch25.0mm
-
Current230A
-
Voltage300V
-
ColorGrey
-
ScrewM8
-
Contact ResistanceLess Than 8mΩ
-
Rated Surge VoltageNo Abnormal Within 1 Minute
-
Inflammability ClassUL94, V-0
-
Insulation ResistanceAbove DC500V, 500MΩ
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationCE, UL, CUL, CQC, VDE etc.
-
Model NumberTR-95N-02F
-
Minimum Order Quantity500 Piece/Pieces
-
PriceUSD 0.864-1.628 Per Pole
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle
600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle
Detailed product Description:
Pitch 25.0mm, 300V 230A, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

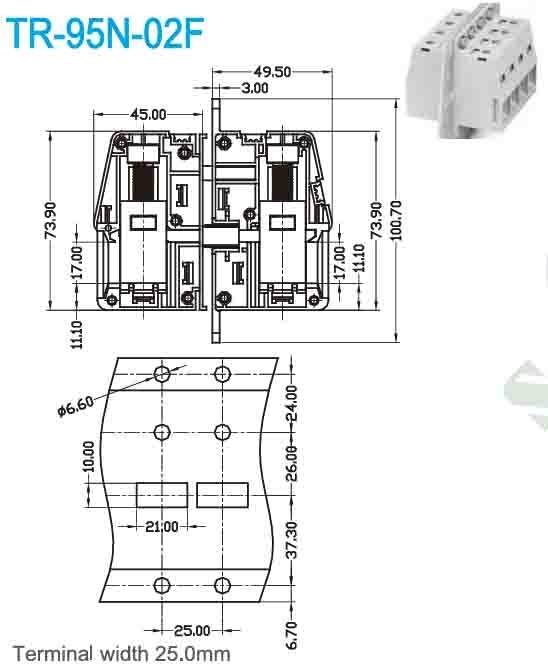

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 230 |
|
300 / 10 |
|
Wire Range AWG |
4-4/0 |
|
4-4/0 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 232 |
800 / 232 |
1000 / 232 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
95 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
27 |
||
|
Screw / Torque / lbf.in |
M8 / 132-177 |
||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
