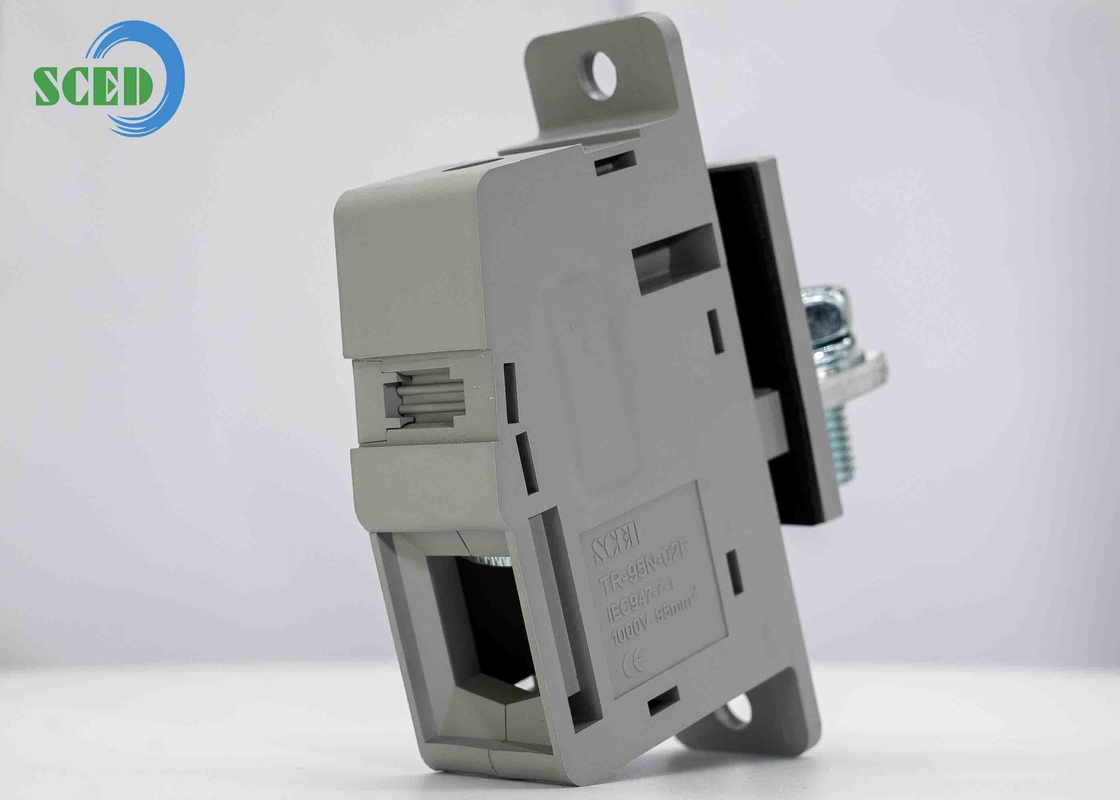

Grey 25.00mm Through Panel Terminal Blocks Connection Copper 300V 230A M8 Steel Screw
-
Highlight
300V Through Panel Terminal Blocks
,M8 Through Panel Terminal Blocks
,25.00mm Through Panel Terminal Blocks
-
Terminal Width25.00mm
-
Current230A
-
Voltage300V
-
Wire Range4-4/0
-
PlasticPA66
-
Inflammability ClassUL94-V0
-
ScrewM8
-
Torque132-177 Lbf.in
-
Stripping Length27mm
-
Wire InletRight Angle
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationCE,UL,CUL, CQC and VDE etc.
-
Model NumberTR-95N-03F
-
Minimum Order Quantity500 Piece/Pieces
-
PriceUSD 0.45-0.92 Per Pole
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
Grey 25.00mm Through Panel Terminal Blocks Connection Copper 300V 230A M8 Steel Screw
Grey 25.00mm Through Panel Terminal Blocks Connection Copper 300V 230A M8 Steel Screw
Detailed product Description:
Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available.
Applications:
1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting
2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 230 |
|
300 / 10 |
|
Wire Range AWG |
4-4/0 |
|
4-4/0 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 232 |
800 / 232 |
1000 / 232 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
95 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
27 |
||
|
Screw / Torque / lbf.in |
M8 / 132-177 |
||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand.
Our products are sold all over the world, you can rest assured.
