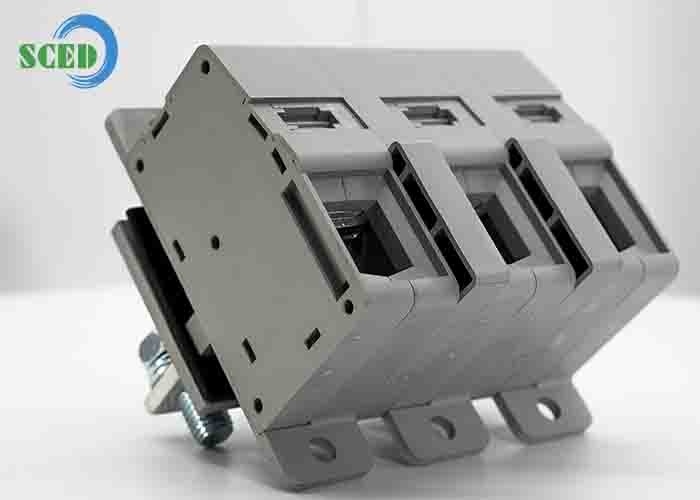

Right Angle Wire Through Panel Terminal Blocks Connector 230A 300V 25.0mm Use In Power Supply
-
Highlight
230A Through Panel Terminal Blocks
,300V Through Panel Terminal Blocks
,Power Supply Through Panel Terminal Blocks
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorGrey
-
Pitch35.00mm
-
Rated Current230A
-
Rated Voltage300V
-
TypeThrough Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors
-
Wire Range4-4/0
-
Strippng Length27mm
-
ScrewM8
-
Inflammability ClassUL94, V-0
-
PlatingNickel Plated
-
Clamp CageSteel
-
Conduction BoardCopper
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR-95N-04FVP-A3
-
Minimum Order Quantity200
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability100K poles each monthly
Right Angle Wire Through Panel Terminal Blocks Connector 230A 300V 25.0mm Use In Power Supply
Right Angle Wire Through Panel Terminal Blocks Connector 230A 300V 25.0mm use in Power Supply
How to order
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

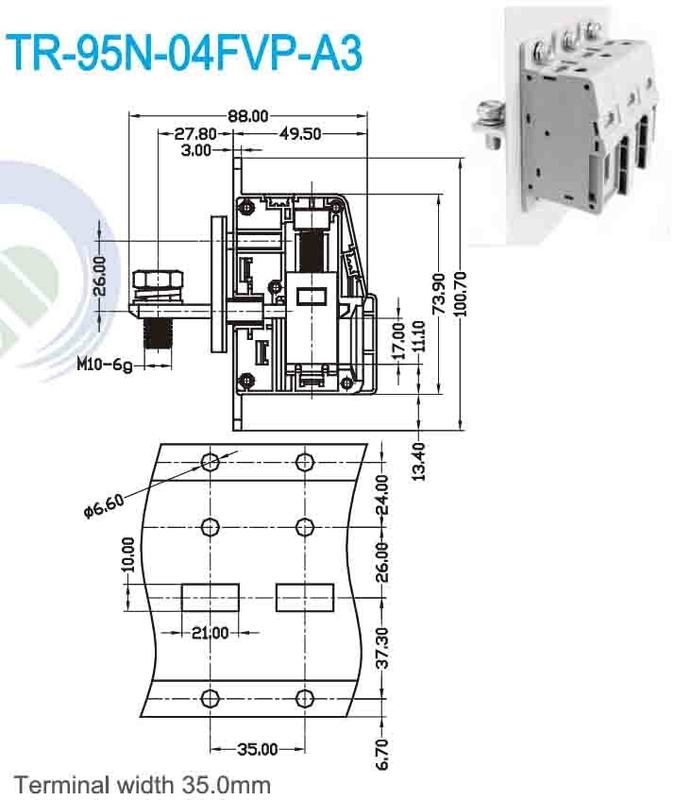

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 230 |
|
300 / 10 |
|
Wire Range AWG |
4-4/0 |
|
4-4/0 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 232 |
800 / 232 |
1000 / 232 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
95 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
27 |
||
|
Screw / Torque / lbf.in |
M8 / 132-177 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
